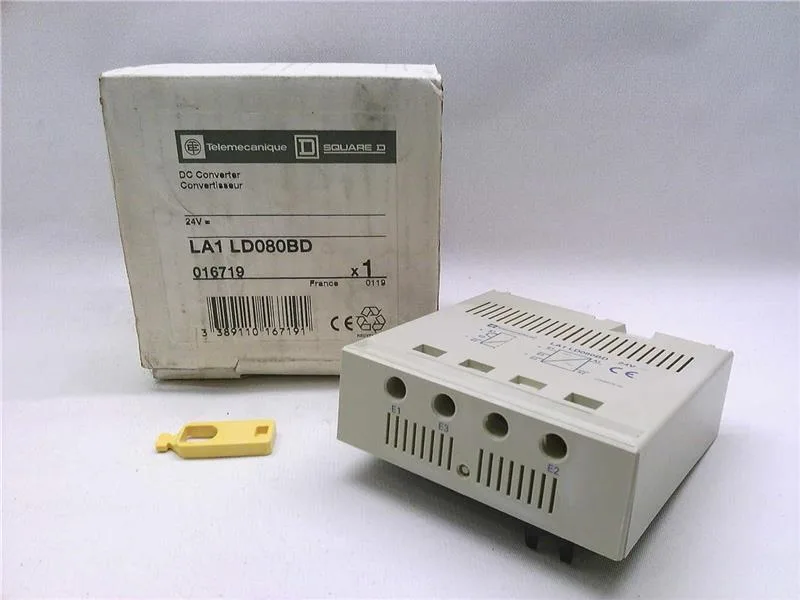

Schneider Electric LA1LD080BD
MPNLA1LD080BD
Obsolete
SQD LA1LD080BD 63A INTEGRAL STARTER|SQD LA1LD080BD 63A INTEGRAL STARTER - 24VDC INVERTER MODULE
$471.03Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Integral 63 |
| Input voltage type | DC |
| Output voltage type | AC |
| Product or component type | Voltage converter |
| Operating voltage limit | 0.8...1.1 Uc |
| [Ue] rated operational voltage | 24 V DC |
| Power consumption in | 300 W inrush 8 W sealed |
| Connections - terminals | screw clamp terminal 1 x 1 mm² screw clamp terminal 2 x 2.5 mm² |
| Range | TeSys |
| Category | 22384-STARTERS,INTEGRAL,ACCESS |
| Device short name | LA1 |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | -13...122 °F (-25...50 °C) |
MPN
LA1LD080BD
