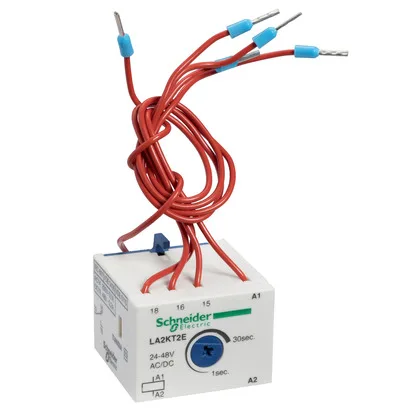

Schneider Electric LA2KT2E
MPNLA2KT2E
Active
Elect time delay aux contact block, TeSys K, 1C/O, on delay 1-30s, front, control 24...48V AC/DC|Electronic time delay auxiliary contact block, TeSys K, 1C/O, on delay 1-30s, front, control 24...48V AC/DC
$20.84Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Timer type | On delay |
| Product or component type | Time delay auxiliary contact block |
| [Ue] rated operational voltage | 24...48 V AC/DC control circuit 240 V AC signalling circuit |
| Rated operational voltage limits | 0.85...1.1 Uc |
| [Ith] conventional free air thermal current | 2 A for signalling circuit |
| Pole contact composition | 1 C/O |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Front |
| Connections - terminals | slip-on terminals |
| Depth | 1.5 in (38 mm) |
| Width | 1.5 in (38 mm) |
| Height | 1.06 in (27 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-5-1 |
| Range | TeSys |
| Category | US10I1222341 |
| Reset time | 1.5 s during time delay 0.5 s after time delay |
| Time delay range | 1...30 s |
| Device short name | LA1 |
| Contacts operation | Time delay |
| Protective treatment | TC IEC 60068 |
| Insulation resistance | > 10 MOhm |
| Environmental characteristic | Normal environment |
| Ambient air temperature for operation | 14...140 °F (-10...60 °C) |
MPN
LA2KT2E
