UL and CSA certified

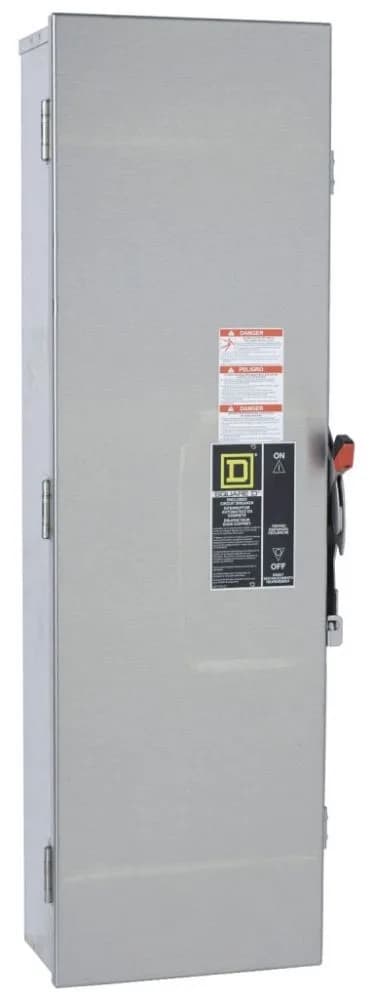

Code acceptance in North American installations is straightforward — the Schneider LA400DS carries both UL and CSA markings.
Conduit and wire sizing flexibility
Conduit entries from 1/2 to 3-1/2 in and wire from 10 AWG to 2/0 AWG copper fit the surface-mount LA400DS enclosure, easing field termination.
With dimensions 13.75 in wide, 7.25 in deep, and 42.25 in high, the LA400DS mounts on any vertical surface and operates from 0 °C to 60 °C.
Protection and material

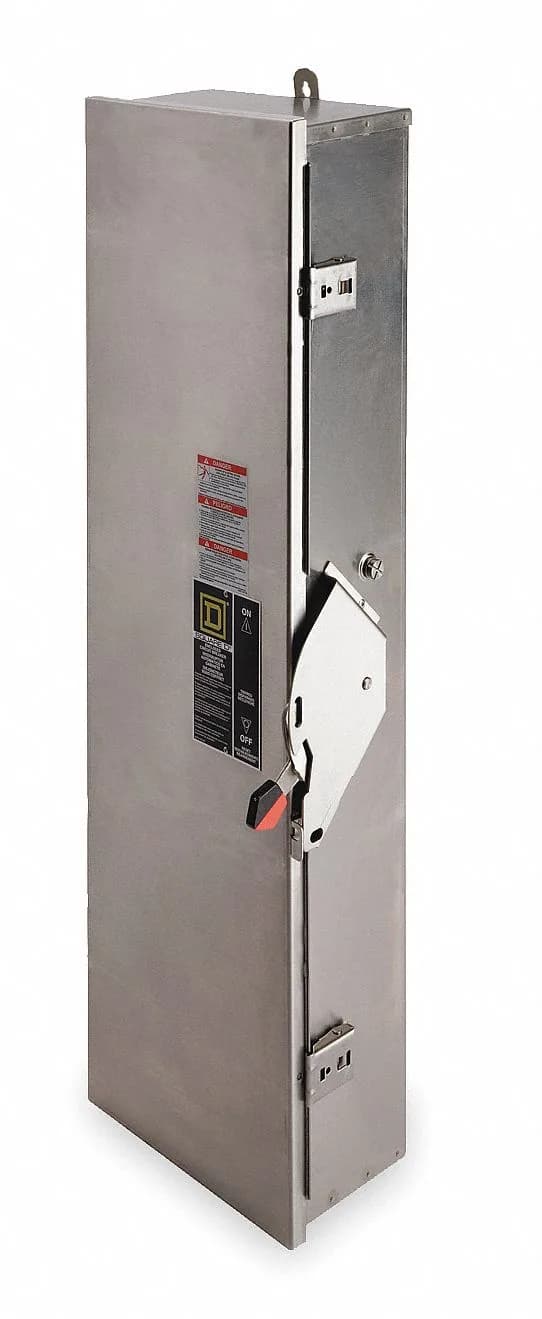

The stainless steel housing meets NEMA 4/4X/5 and IP54, making the LA400DS suitable for outdoor corrosion-prone environments.
