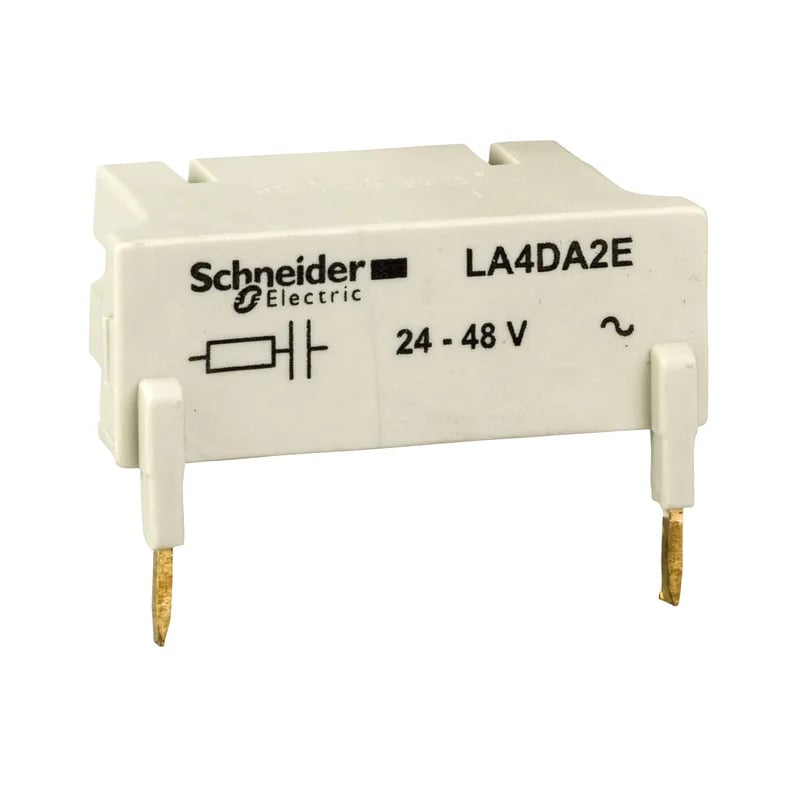

Schneider Electric LA4DA2E
MPNLA4DA2E
Obsolete
Contactor, Varistor Coil Suppressor, 24-48VAC, Screw Connection|Contactor, Varistor Coil Suppressor, 24 - 48 Volt AC, Screw Connection to Coil
$15.24 – $43.58Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Suppressor module |
| Maximum peak voltage | 3 Uc |
| Coil voltage | 24...48 V AC 50/60 Hz |
| IP degree of protection | IP2XIEC 60529 |
| Mounting mode | By screws |
| Mounting location | Top |
| Standards | IEC 60947-5-1 EN 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
| Range | TeSys |
| Category | US10I1222341 |
| Device short name | LA4D |
| Suppressor technology | RC circuit |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
LA4DA2E
