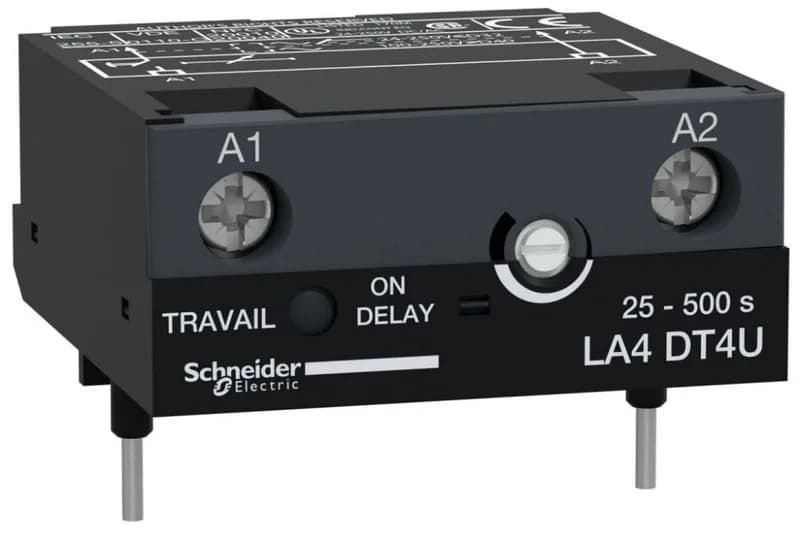

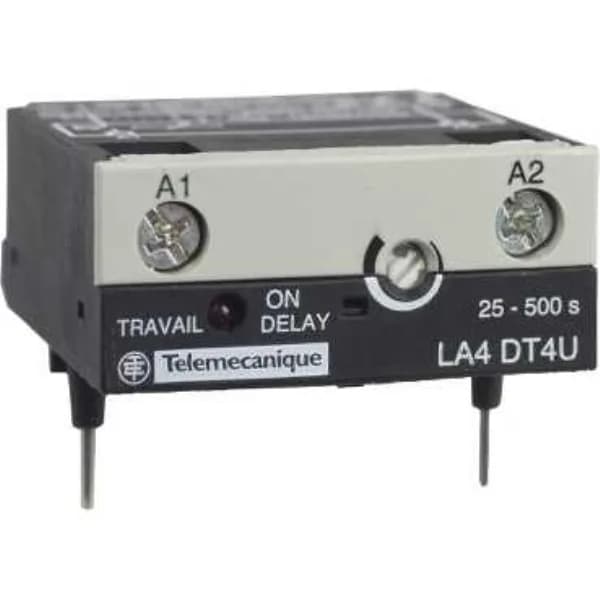

Schneider Electric LA4DT4U
MPNLA4DT4U
Obsolete
CONTACTOR+RELAY TIMER|SQD LA4DT4U CONTACTOR+RELAY TIMER
$58.42 – $100.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Timer type | On delay |
| Protection type | Built-in by varistor |
| Product or component type | Serial timer modules |
| [Ures] residual voltage | 3.3 V |
| Coil voltage | 24...250 V AC 50/60 Hz 24...250 V DC |
| Voltage | 250 V IEC 60947-1 |
| Control circuit voltage limits | By mechanical contact: 0.8...1.1 Uc |
| Poles description | 3P |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Mounting location | Top |
| Connections - terminals | Control circuit connector 1 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit connector 1 0.002...0.004 in² (1...2.5 mm²)solid with cable end Control circuit connector 1 0.002...0.004 in² (1...2.5 mm²)flexible without cable end Control circuit connector 1 0.002...0.004 in² (1...2.5 mm²)solid without cable end Control circuit connector 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end Control circuit connector 2 0.002...0.004 in² (1...2.5 mm²)solid with cable end Control circuit connector 2 0.002...0.004 in² (1...2.5 mm²)flexible without cable end Control circuit connector 2 0.002...0.004 in² (1...2.5 mm²)solid without cable end |
| Electrical durability | 30 Mcycles |
All specifications
| Parameter | Value |
|---|---|
| Standards | IEC 60255-5 |
| Range | TeSys |
| Category | US10I1222341 |
| Reset time | 150 ms during time delay 50 ms after time delay |
| Heat dissipation | 2 W |
| Local signalling | Illuminates during time delay by LED |
| Time delay range | 25...500 s |
| Device short name | LA4DT |
| Tightening torque | 15.05 lbf.in (1.7 N.m) |
| Immunity to microbreaks | 10 ms during time delay 2 ms after time delay |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
| Permissible ambient air temperature around the device | -13...158 °F (-25...70 °C) |
MPN
LA4DT4U
