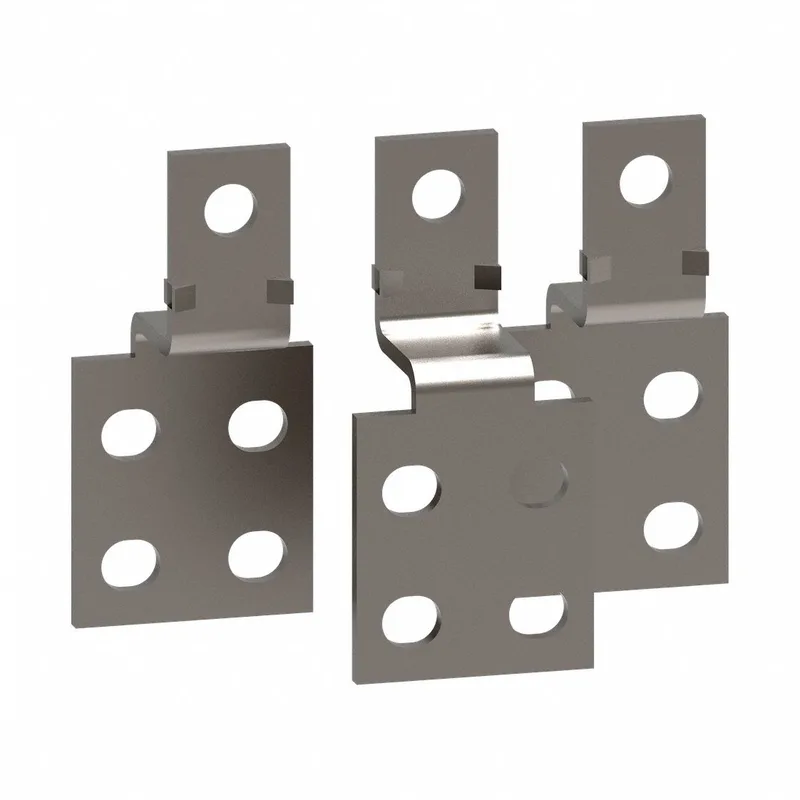

Schneider Electric TeSys range, LA9G3671 terminal extension, set of 3, obsolete lifecycle.
| Parameter | Value |
|---|---|
| Connector type | Large |
| Product or component type | Terminal extension |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | 9842.52 ft (3000 m) without derating 5000 m with derating factor |
| Depth | 3.3 in (85 mm) |
| Width | 1.02 in (26 mm) |
| Height | 1.6 in (40 mm) |
| Standards | EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 GB/T 14048 |
| Range | TeSys |
| Category | US10I1222328 |
| Quantity per set | Set of 3 |
| Device short name | LA9G |
| Accessory (separate part category) | Extension accessories |
This is a TeSys terminal extension sold as a set of three. It measures 1.02 in wide, 1.6 in tall, and 3.3 in deep (26×40×85 mm), so it fits the standard contactor footprint in a TeSys F or D frame. Listed to EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and GB/T 14048. Operates at altitudes up to 9842.52 ft (3000 m) without derating, and up to 5000 m with a derating factor.
The part lists UL, CSA, IEC, and GB/T standards—those are nameplate marks. For full documentation (RoHS/REACH declarations), a sourcing request with the lot/batch code would be needed; the distributor can pull that from the original package.
