The Schneider LA9G3761 is a connection bar for TeSys reversing contactors — the mechanical link that ties two contactors into a reversing pair. It measures 11.7 inches deep (298 mm), which is the dimension that matters when you're laying this out in a panel that's already cramped with a reversing starter and its interlock. Stamped for 3-pole reversing duty, and carries the full set of global harmonized standards: EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and GB/T 14048.4. That means it fits a UL panel just as well as an IEC one — no last-minute compliance surprise when the inspector shows up.

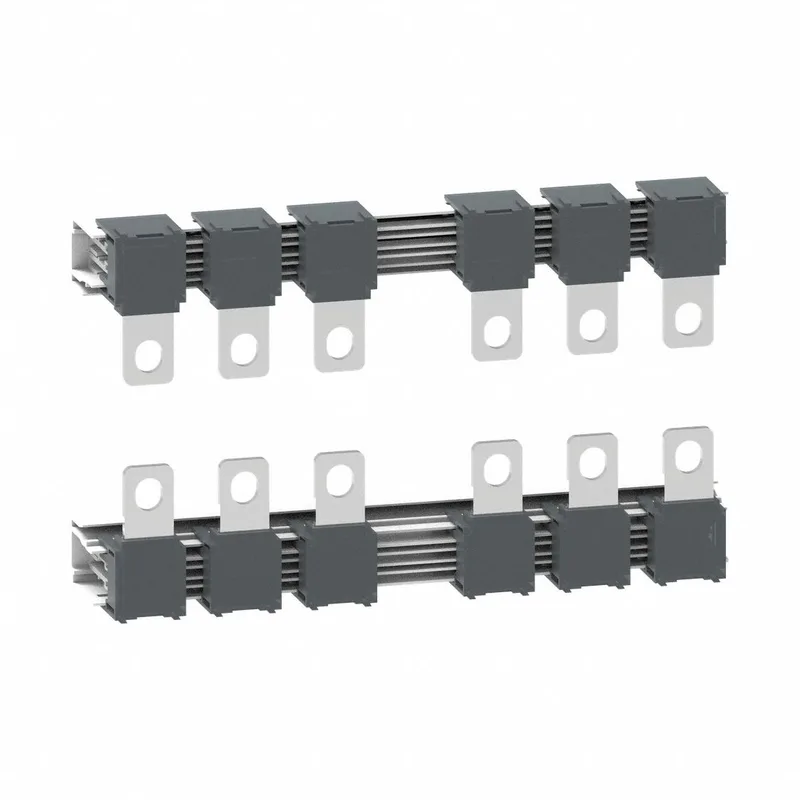

Schneider LA9G3761 TeSys Connection Bar, Depth 11.7 in
MPNLA9G3761
Obsolete
Schneider TeSys connection bar, LA9G3761, depth 11.7 in (298 mm), reversing circuit.
$537.37Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Electrical circuit type | Reversing |
| Product or component type | Set of connections |
| Poles description | 3P |
| Operating altitude | 9842.52 ft (3000 m) without derating 5000 m with derating factor |
| Depth | 11.7 in (298 mm) |
| Width | 2.9 in (74 mm) |
| Height | 2.6 in (65 mm) |
| Standards | EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 GB/T 14048.4 |
| Range | TeSys |
| Category | US10I1222328 |
| Quantity per set | Set of 1 |
| Device short name | LA9G |
| Accessory (separate part category) | Connection accessory |
Product details
Frequently asked questions
What is the depth of LA9G3761?
The depth is 11.7 inches (298 mm). This is the dimension you need for panel depth clearance, not the height or width.
What compliance standards does LA9G3761 meet?
It complies with EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and GB/T 14048.4. Covers both North American and international installations.
