Schneider LA9G4602 Contactor &Amp; Motor Starter Accessories — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Product or component type | Terminal extension |
| Poles description | 4P |
| Pollution degree | 3 IEC 60947-1 |
| Operating altitude | 9842.52 ft (3000 m) without derating 5000 m with derating factor |
| Depth | 1.2 in (30 mm) |
| Width | 0.1 in (3 mm) |
| Height | 1.5 in (37.5 mm) |
| Standards | EN/IEC 60947-1 UL 60947-1 CSA C22.2 No 60947-1 GB/T 14048 |
| Category | US10I1222328 |
| Quantity per set | Set of 4 |
| Device short name | LA9G |
| Accessory (separate part category) | Connection accessories |

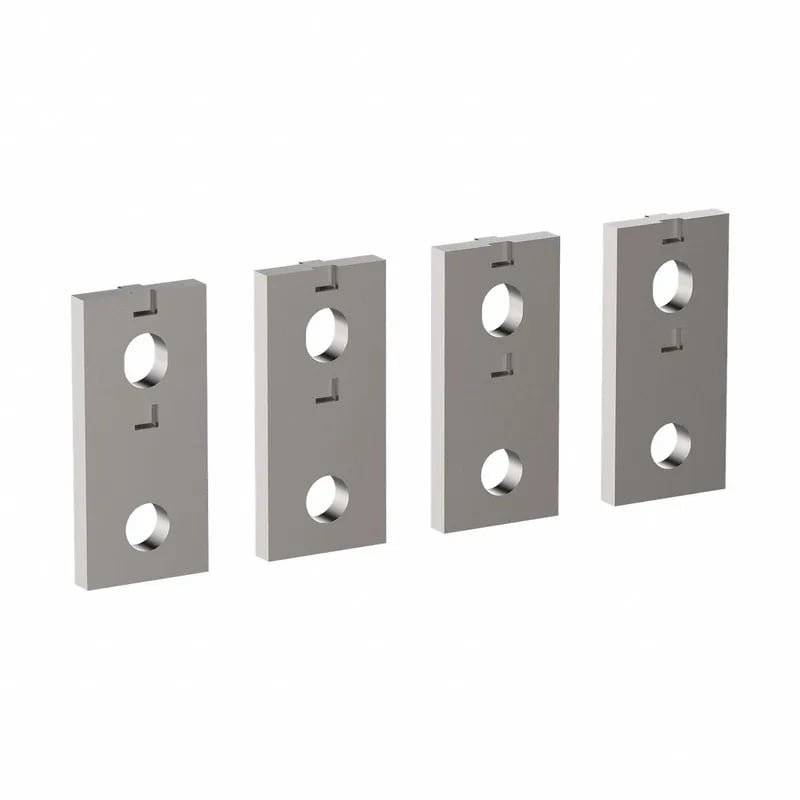

The LA9G4602 is a Schneider TeSys Giga straight terminal extension, 4-pole, supplied as a set of 4, designed for LC1G265-500 contactors. It provides a physical extension of the power terminals to simplify wiring access in larger panel layouts. Schneider discontinued this part effective December 2024.
