Schneider Electric LA9G82
MPNLA9G82
Active

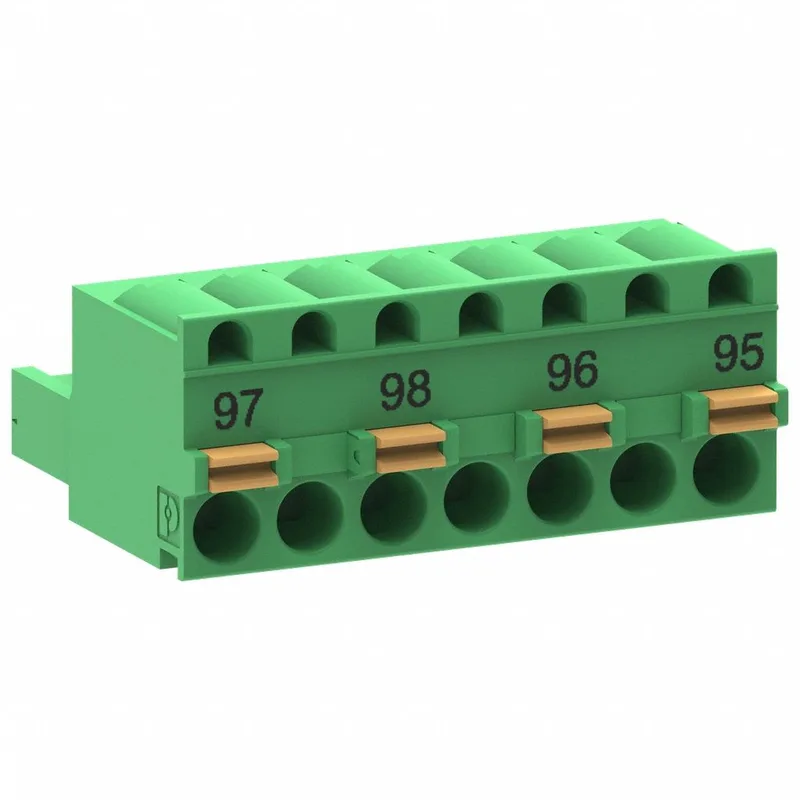

SCHNEIDER Terminal Block: Terminal Block, LA9G82
$14.01Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Connector |
| Dielectric test voltage | 3000 kV AC, 1 minute |
| [Ie] rated operational current | 10 A |
| Maximum horse power rating | 600 V AC 50/60 Hz UL 600 V AC 50/60 Hz IEC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Connections - terminals | Control circuit: push-in 1 cable(s) 0.0003...0.004 in² (0.2...2.5 mm²) solid stranded without cable end Control circuit: push-in 1 cable(s) 0.0004...0.004 in² (0.25...2.5 mm²) flexible with cable end Control circuit: push-in 2 cable(s) 0.0008...0.002 in² (0.5...1.0 mm²) with cable end |
| Pollution degree | 3 IEC 60947-1 |
| Depth | 1.4 in (36 mm) |
| Width | 1.02 in (26 mm) |
| Height | 0.6 in (15 mm) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 |
| Range | TeSys |
All specifications
| Parameter | Value |
|---|---|
| Category | US10I1222328 |
| Pin number | 4 |
| Quantity per set | Set of 1 |
| Device short name | LA9G |
| Device application | Control circuit |
| Overvoltage category | III |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
LA9G82
