Schneider Electric LA9GSS330

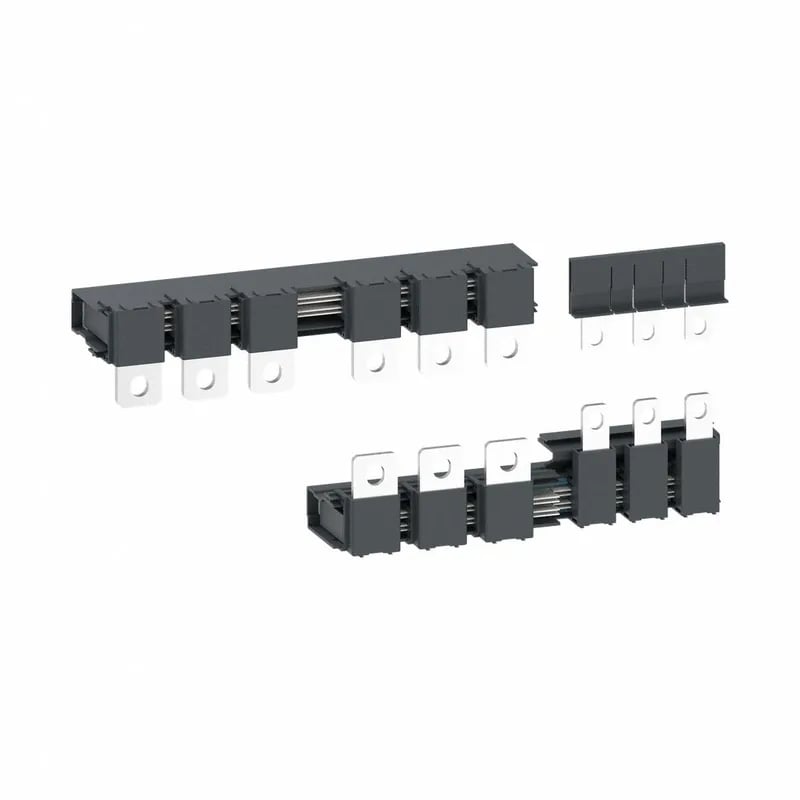

Schneider LA9GSS330 TeSys Connection Bar, Star-Delta, Active

MPNLA9GSS330
Active

Schneider TeSys LA9GSS330 Connection Bar, Star-Delta, 3 Pole, Depth 17.3 in (440 mm).

$606.05Ref. price · indicative, final on quote
Schneider Electric LA9GSS330 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LA9GSS330 specifications
ParameterValue
Electrical circuit typeStar-delta
Product or component typeSet of connections
Poles description3P
Operating altitude9842.52 ft (3000 m) without derating 5000 m with derating factor
Depth17.3 in (440 mm)
Width5.9 in (150 mm)
Height2.6 in (65 mm)
StandardsEN/IEC 60947-4-1
RangeTeSys
CategoryUS10I1222328
Quantity per setSet of 1
Device short nameLA9G
Accessory (separate part category)Connection accessory

Product details

Schneider LA9GSS330 is a TeSys range connection bar set, designed to wire a star-delta motor starter using three TeSys contactors. This is the part that bridges the contactor outputs into the delta configuration — no need to build it with loose terminals and jumpers.

Dimensions: 17.3 in (440 mm) deep, 5.9 in (150 mm) wide, 2.6 in (65 mm) high. Fits inside a standard TeSys enclosure footprint. Conforms to EN/IEC 60947-4-1.

Set includes one connection bar for a 3-pole star-delta circuit. Use with TeSys contactors of matching frame to complete the starter assembly.

Frequently asked questions

What standard does the LA9GSS330 comply with?

It complies with EN/IEC 60947-4-1, covering contactors and motor-starters.
