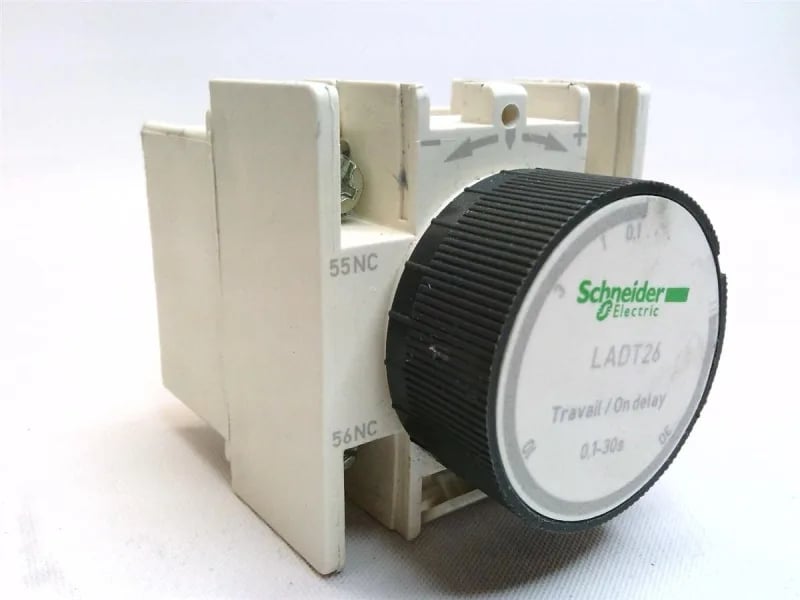

Schneider Electric LAD-T26

Schneider Electric LAD-T26

MPNLAD-T26

Time delay auxiliary contact block, TeSys Deca, 1NO+1NC, on delay 1-30s, front, lugs-ring terminals

$54.61 – $160.09Ref. price · indicative, final on quote
Schneider Electric LAD-T26 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LAD-T26 key specifications
ParameterValue
Voltage min17 V
Voltage insulation690 V IEC 60947-5-1 600 V UL 600 V CSA
Current min5 mA
Pole contact composition1 NO + 1 NC
MountingFront
Connections - terminalslugs-ring terminals 0.3 in (8 mm))
Altitude max9842.52 ft (3000 m)
Depth60.96
Width43.18
Height48.26
Display_color_depthDark grey
Mechanical life cycles5 Mcycles

All specifications

LAD-T26 additional specifications
ParameterValue
StandardsEN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
RangeTeSys TeSys Deca
IP ratingIP2X conforming to IEC 60529
Torque15.05 lbf.in (1.7 N.m) flat Ø 6 mm 15.05 lbf.in (1.7 N.m) Philips No 2 15.05 lbf.in (1.7 N.m) pozidriv No 2
Timer_typeOn delay
Package_typePCE
Resistance> 10 MOhm
Protection_typeGG fuse 10 A
Non-Overlap time1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact
Supply voltage690
Contacts operationTime delay
Switching current6
Storage temperature-76...176 °F (-60...80 °C)
Protective treatmentTH IEC 60068
Irms rated making capacity140 A AC 250 A DC
Environmental characteristicNormal environment
Permissible Short-Time rating100 A 140 °F (60 °C) 1 s 120 A 140 °F (60 °C) 500 ms 140 A 140 °F (60 °C) 100 ms
Main_product_or_component_typeTime delay auxiliary contact block
Operating temperature-40
Ordering and shipping details (Category)US10I1222341
