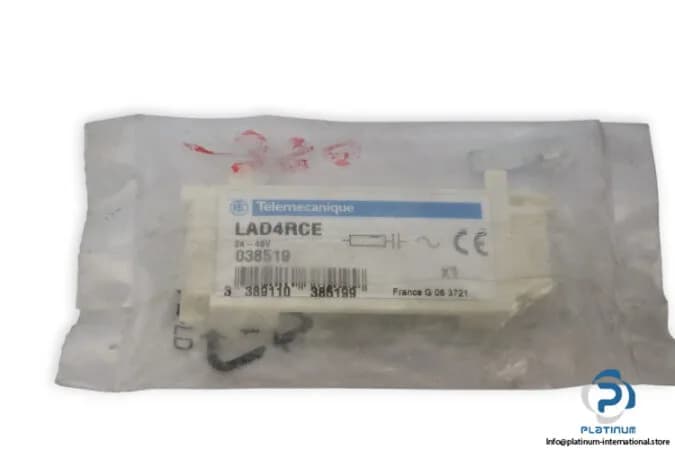

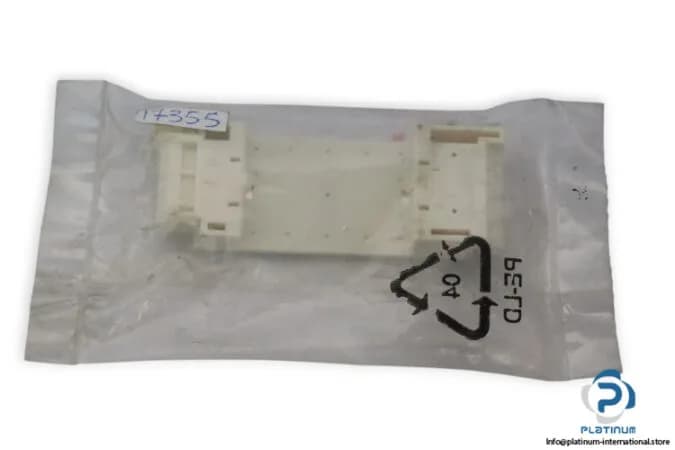

Schneider Electric LAD4RCE
MPNLAD4RCE
Active
Surge Suppressor Module, Clip-On, 24-48VAC, RC Circuit, LC1D09-38|Surge Suppressor Module, Clip-On, 24 - 48 Volt AC, RC Circuit, 3/4-Pole, LC1D09 - 38, LC1DT20 - 40, LC1D098 - 258
$5.93Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Suppressor module |
| Maximum peak voltage | 3 Uc |
| Coil voltage | 24...48 V AC |
| IP degree of protection | IP2XIEC 60529 |
| Mounting mode | By clips |
| Mounting location | Side |
| Standards | IEC 60947-5-1 EN 60947-5-1 CSA C22.2 No 60947-5-1 UL 60947-5-1 GB/T 14048.5 |
| Range | TeSys |
| Category | US10I1222341 |
| Device short name | LAD4 |
| Suppressor technology | RC circuit |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Ambient air temperature for operation | -13...131 °F (-25...55 °C) |
MPN
LAD4RCE
