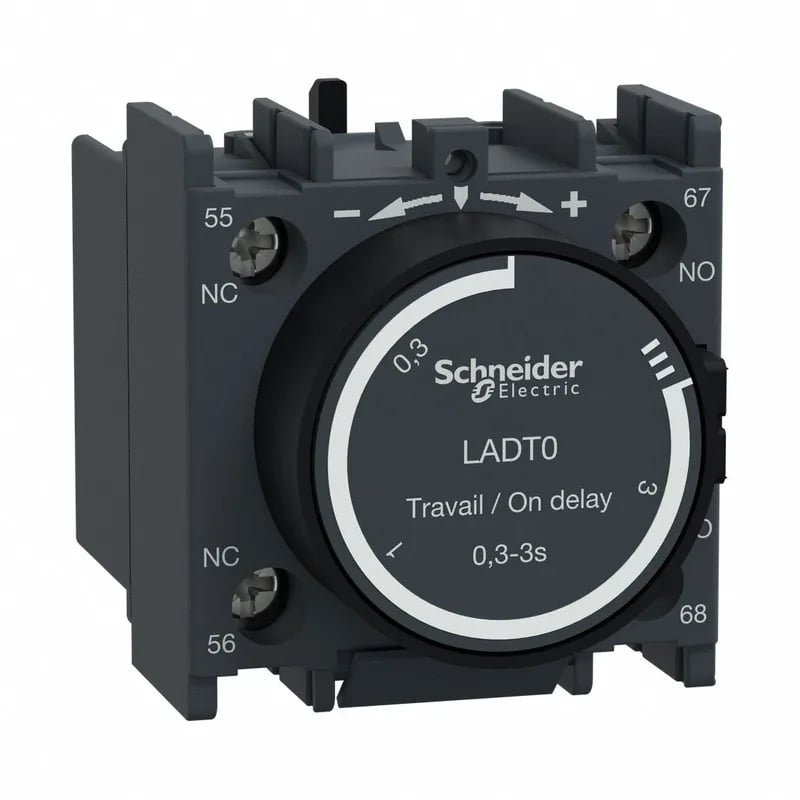

Schneider Electric LADT0

Schneider LADT0 TeSys Deca time-delay auxiliary contact block, 1NO+1NC, 6 A

MPNLADT0
Active

Schneider Electric TeSys Deca LADT0 pneumatic time-delay auxiliary contact block, 1 Normally Open + 1 Normally Closed contacts, on-delay timing, 690 V insulation, 6 A switching current, screw clamp terminals, front mount, IP20.

$27.94Ref. price · indicative, final on quote
Schneider Electric LADT0 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LADT0 key specifications
ParameterValue
Timer typeOn delay
Product or component typeTime delay auxiliary contact block
Voltage690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1
[Ue] rated operational voltage690 V AC 25...400 Hz
[Ie] rated operational current6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13
[Ith] conventional free air thermal current10 A (at 140 °F (60 °C))
Pole contact composition1 NO + 1 NC
IP degree of protectionIP20 conforming to IEC 60529
Mounting locationFront
Connections - terminalsscrew clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals
Operating altitude9842.52 ft (3000 m)
ColorDark grey

All specifications

LADT0 additional specifications
ParameterValue
Depth2.4 in (61 mm)
Width1.7 in (44 mm)
Height1.9 in (48 mm)
StandardsEN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ
RangeTeSys TeSys Deca
CategoryUS10I1222341
Time delay range0.3...3 s
Tightening torque15.05 lbf.in (1.7 N.m) flat Ø 6 mm 15.05 lbf.in (1.7 N.m) Philips No 2 15.05 lbf.in (1.7 N.m) pozidriv No 2
Contacts operationTime delay
Protective treatmentTH IEC 60068
Irms rated making capacity140 A at 250 A at 10 MOhm
Environmental characteristicNormal environment
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...158 °F (-40...70 °C)

Product details

Overview

The LADT0 is a pneumatic time-delay auxiliary contact block in the TeSys Deca range, delivering one normally-open and one normally-closed contact with on-delay timing for sequential motor control or interlocking circuits. Rated for 690 V insulation and 6 A switching current, it mounts directly on the front of TeSys Deca CAD and LC1D contactors, as well as TeSys F LC1F and CR1F frames.

Selection and comparison

Compared to the LAD8N11 instantaneous block (10 A rated, 2-pole), the LADT0 provides on-delay timing at 6 A with 1NO+1NC contacts — choose the LADT0 when a sequenced start or delayed dropout is required, and the LAD8N11 when only instantaneous mirroring of the contactor state is needed.
