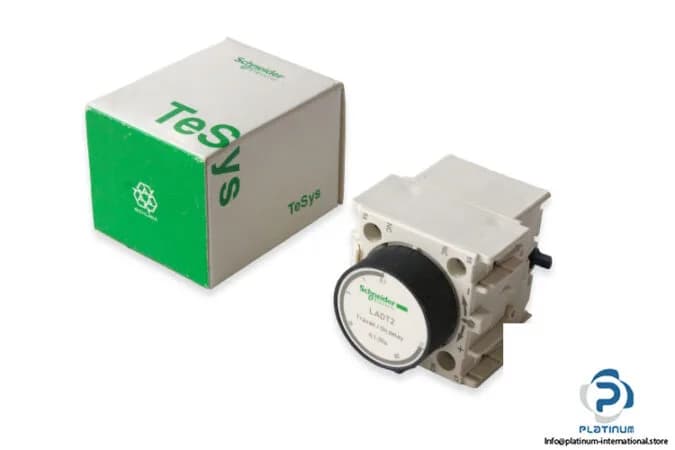

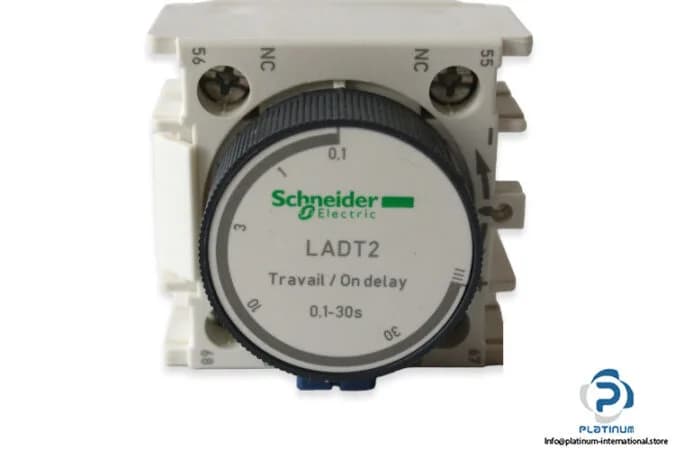

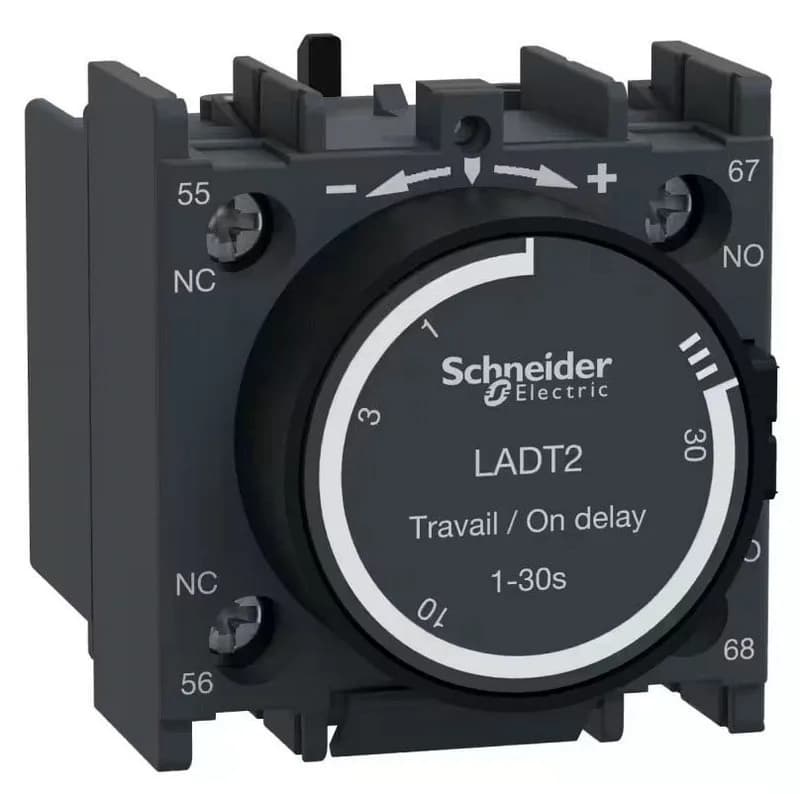

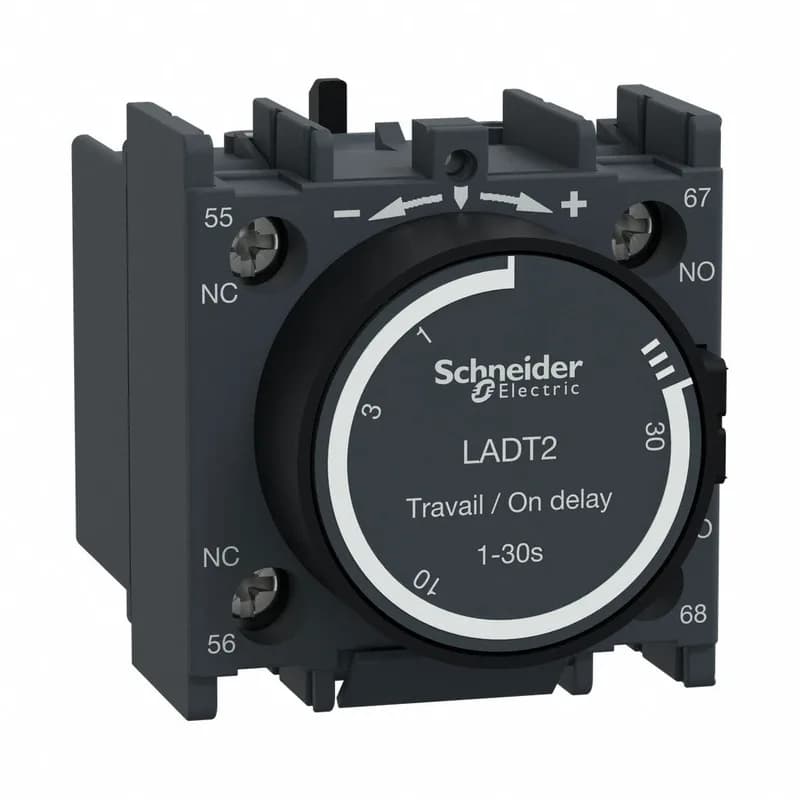

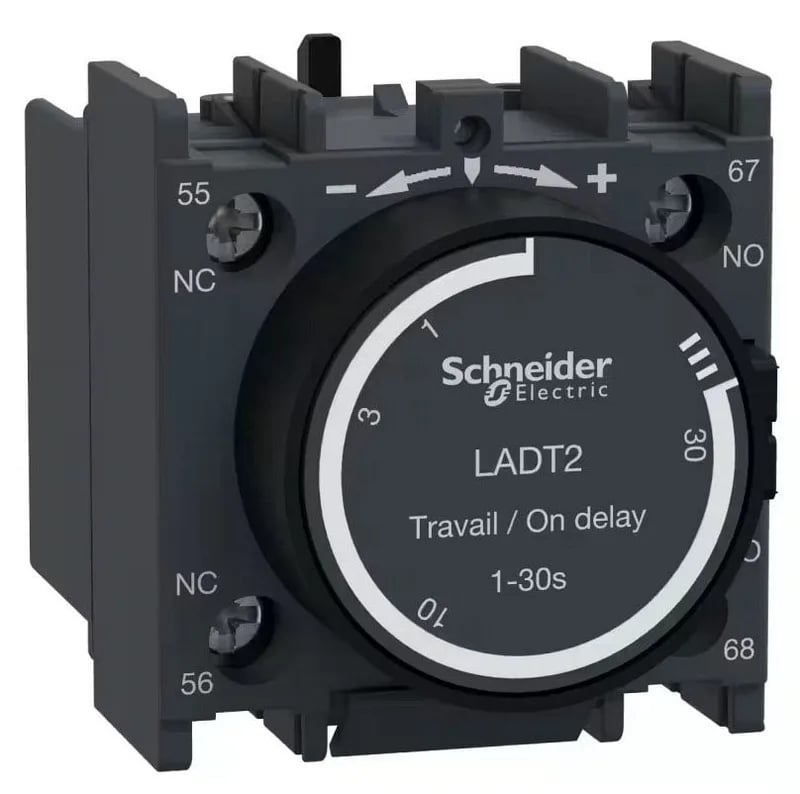

Schneider Electric LADT2
MPNLADT2
Active
Time Delay Attachment, Pneumatic, TeSys Deca, On Delay, 0.1-30 Sec, 1NO/NC|Time Delay Attachment, Pneumatic, TeSys Deca, On Delay, 0.1 - 30 Second,1 Normally Open / 1 Normally Closed, Screw Clamp Terminals
$27.94Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Timer type | On delay |
| Product or component type | Time delay auxiliary contact block |
| Voltage | 690 V IEC 60947-5-1 600 V UL 60947-5-1 600 V CSA C22.2 No 60947-5-1 |
| [Ue] rated operational voltage | 690 V AC 25...400 Hz |
| [Ie] rated operational current | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 125 V DC-13 0.1 A at 600 V DC-13 |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Pole contact composition | 1 NO + 1 NC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Front |
| Connections - terminals | screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible with cable end screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)flexible without cable end screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²)rigid screw clamp terminals |
| Operating altitude | 9842.52 ft (3000 m) |
| Color | Dark grey |
All specifications
| Parameter | Value |
|---|---|
| Depth | 2.4 in (61 mm) |
| Width | 1.7 in (44 mm) |
| Height | 1.9 in (48 mm) |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ |
| Range | TeSys TeSys Deca |
| Category | US10I1222341 |
| Time delay range | 1...30 s |
| Tightening torque | 15.05 lbf.in (1.7 N.m) flat Ø 6 mm 15.05 lbf.in (1.7 N.m) Philips No 2 15.05 lbf.in (1.7 N.m) pozidriv No 2 |
| Contacts operation | Time delay |
| Protective treatment | TH IEC 60068 |
| Irms rated making capacity | 140 A at 250 A at 10 MOhm |
| Environmental characteristic | Normal environment |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) |
MPN
LADT2
