Schneider Electric LAEN11
MPNLAEN11
Active

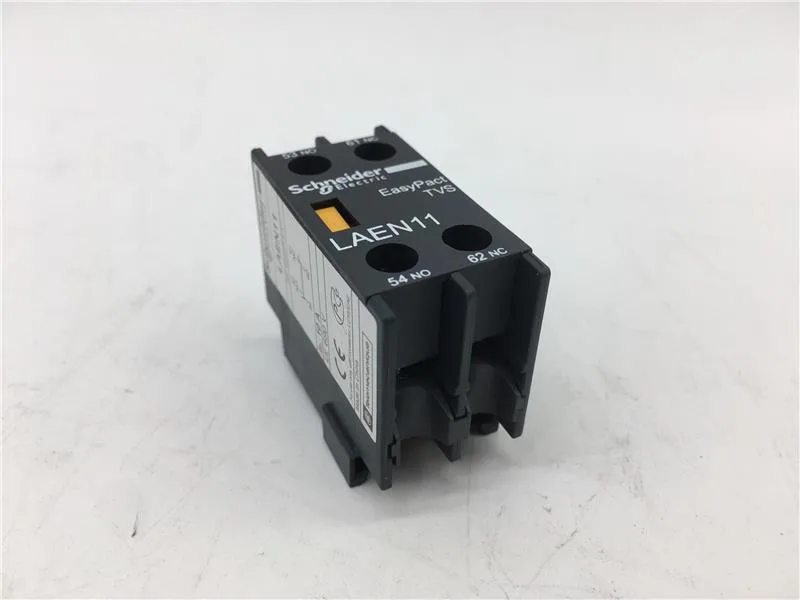

LAEN11 - EASYPACT TVS by TELEMECANIQUE
$5.36Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Auxiliary contact block |
| Voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | 10 MOhm |
| Pole contact composition | 1 NO + 1 NC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Front |
| Connections - terminals | Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end |
| Operating altitude | 3000 m without derating |
| Color | Grey (RAL 7011) |
| Product weight | 0.035 kg |
| Standards | EN/IEC 60947-1 EN/IEC 60947-5-1 GB/T 14048.1 GB/T 14048.5 EN/IEC 60335-1:Clause 30.2 EN/IEC 60335-2-40:Annex JJ |
All specifications
| Parameter | Value |
|---|---|
| Range | Easy TeSys |
| Device short name | LAEN |
| Device application | Signalling |
| Protective treatment | TH conforming to IEC 60068 |
| Auxiliary contacts operation | Instantaneous |
| Environmental characteristic | Standard environment |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -5...55 °C |
MPN
LAEN11
