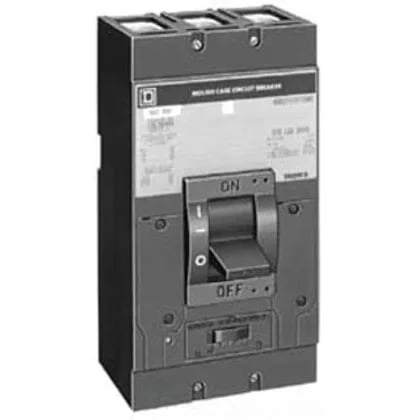

Schneider LAF364001039 Molded Case Breaker
MPNLAF364001039
Breaker, Molded Case, 400A, 3P, 600VAC, 12VDC Shunt Trip, No Lugs|Breaker, Molded Case, 400 Amp, 3-Pole, 600 Volt AC, 12 Volt DC Shunt Trip, No Lugs, Terminal Pads
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type | MOLDED CASE, THERMAL MAGNETIC |
| Frame type | L |
| Terminal type | BUS BAR |
| Voltage rating | 240/480/600 VAC AT 50/60 HZ, 480 VAC STAR/277 VAC AT 50/60 HZ, 600 VAC STAR/347 VAC AT 50/60 HZ (UL/CSA/NOM); 415 VAC AT 50/60 HZ (IEC); 250 VDC |
| Maximum AC voltage rating | 600 V |
| Maximum DC voltage rating | 250 V |
| Current rating | 400 AMPERE |
| Poles | 3 |
| Approval | UL, CSA, CE |
| Dimensions | 6 INCH W X 5.84 INCH D X 11 INCH H |
| Model | LA |
| Category | 3 Pole Non-Interchangeable Trip Thermal Magnetic Circuit Breakers |
All specifications
| Parameter | Value |
|---|---|
| Manufacturer | Square D Co. |
| Sub-Category | Non Interchangeable Trip Breaker |
| Manufacturer brand | Square D Co. |
| Interrupting rating | 42 KILOAMPERE AT 240 VAC, 30 KILOAMPERE AT 480 VAC STAR/277 VAC OR 480 VAC, 22 KILOAMPERE AT 600 VAC STAR/347 VAC OR 600 VAC (UL/CSA/NOM); 20 KILOAMPERE AT 415 VAC (IEC); 10 KILOAMPERE AT 250 VDC |
| Product description | Square D LAF364001039 Molded Case Circuit Breaker 600V 400A |
| Additional information | INCLUDES 12 VDC SHUNT TRIP |
| Full technical description | Molded Case, Thermal Magnetic Type; 6 Inch W X 5.84 Inch D X 11 Inch H Size; 600 V Max. AC Voltage Rating; 250 V Max. DC Voltage Rating; UL, CSA, CE Approval; 240/480/600 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz, 600 VAC Star/347 VAC at 50/60 Hz (Ul/Csa/Nom); 415 VAC at 50/60 Hz (IEC); 250 VDC Voltage Rating; 42 Kiloampere at 240 VAC, 30 Kiloampere at 480 VAC Star/277 VAC or 480 VAC, 22 Kiloampere at 600 VAC Star/347 VAC or 600 VAC (Ul/Csa/Nom); 20 Kiloampere at 415 VAC (IEC); 10 Kiloampere at 250 VDC Interrupting Rating; 400 Ampere Current Rating; 3 Pole(S); Bus Bar Terminal Type; L Frame Type; Includes 12 VDC Shunt Trip; LA Model |
MPN
LAF364001039
