Schneider Electric LAG8N113P
MPNLAG8N113P
Active

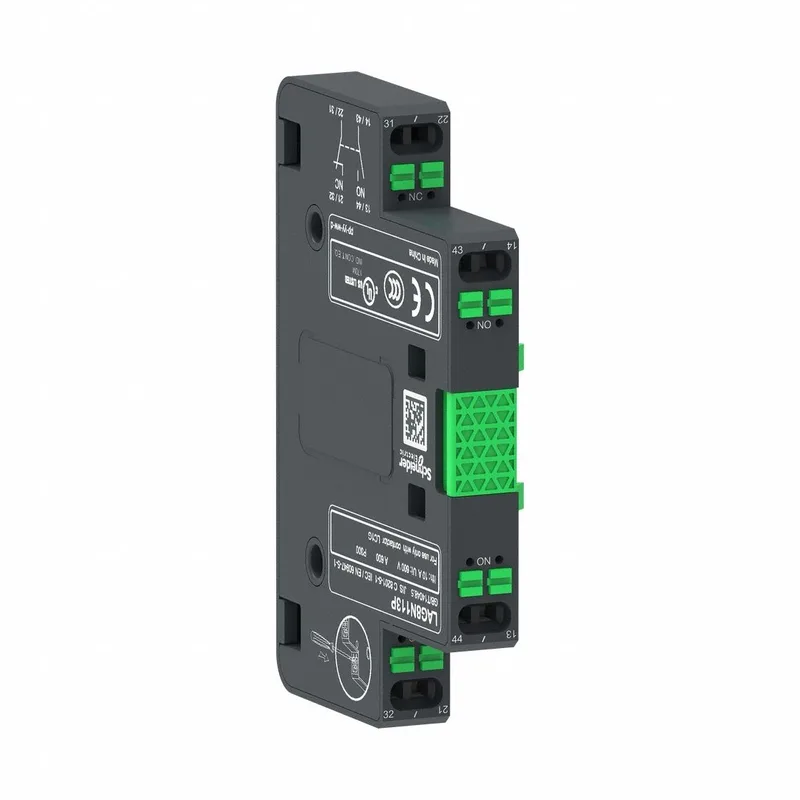

AUXILIARY CONTACT BLOCK TESYS GIGA 1NO + 1NC LATERAL FAC|AUXILIARY CONTACT BLOCK TESYS GIGA 1NO + 1NC LATERAL FACE SIDE MOUNTING PUSH-IN TERMINALS L1/R1
$6.52 – $23.39Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Protection type | GG fuse 10 A |
| Range of product | TeSys G |
| Product or component type | Auxiliary contact block |
| Minimum switching voltage | 17 V |
| Voltage | 600 V IEC 60947-5-1 600 V CSA 600 V UL |
| [Ue] rated operational voltage | 600 V AC 25...400 Hz |
| Minimum switching current | 1 mA |
| [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) |
| Pole contact composition | 1 NO + 1 NC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting location | Side |
| Connections - terminals | screw clamp terminals 0.001...0.004 in² (0.75...2.5 mm²)solid stranded without cable end screw clamp terminals 0.001...0.004 in² (0.75...2.5 mm²)flexible with cable end |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 9842.52 ft (3000 m) |
| Depth | 3.3 in (84.8 mm) |
| Width | 0.6 in (15.4 mm) |
| Height | 2.2 in (55.8 mm) |
| Mechanical durability | 8 Mcycles |
| Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB 14048.5 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-1 UL 60335-2-40:Annex JJ |
| Range | TeSys |
| Category | US10I1222328 |
| Non-overlap time | 1.5 ms on de-energisation no overlap between NC and NO contact 1.5 ms on energisation no overlap between NC and NO contact |
| Device short name | LAG8N |
| Protective treatment | TH |
| Insulation resistance | > 10 MOhm |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
| Auxiliary contacts operation | Instantaneous |
| Permissible short-time rating | 100 A 140 °F (60 °C) 1 s 120 A 140 °F (60 °C) 500 ms 140 A 140 °F (60 °C) 100 ms |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
LAG8N113P
