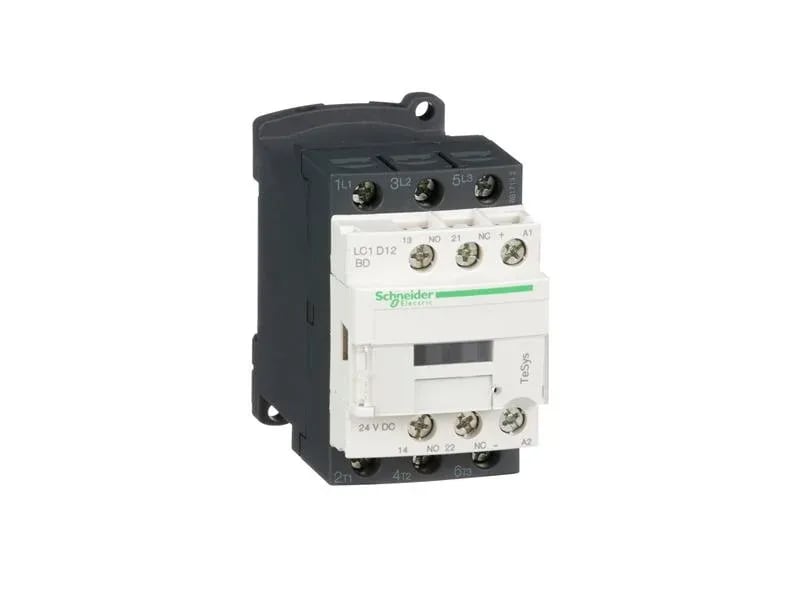

Schneider Electric LC1-D12BDC
MPNLC1-D12BDC
Unclassified
$61.44Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Current | 12 A |
| Poles | 3 |
| Utilization category | AC-4 AC-1 AC-3 AC-3e |
| Mounting | Plate Rail |
| Altitude max | 3000 m without derating |
| Depth | 95 |
| Width | 45 |
| Height | 77 |
| Standards | IEC 60947-1 IEC 60947-4-1 GB/T 14048.4 |
| Range | TeSys Deca |
| IP rating | IP2X front face for main circuit conforming to IEC 60529 IP2X front face for coil circuit conforming to IEC 60529 |
All specifications
| Parameter | Value |
|---|---|
| Package_type | PCE |
| Resistance | 850 °C conforming to IEC 60695-2-11 |
| Non-Overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Application_type | Resistive load Motor control |
| Supply voltage | Power circuit: Power circuit: 10 MOhm for signalling circuit |
| Device short name | LC1D |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Vibrations contactor closed (4 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Shocks 11 ms contactor open (10 Gn) conforming to IEC 60068-2-27 Shocks 11 ms contactor closed (15 gn) conforming to IEC 60068-2-27 |
| Main_product_or_component_type | Contactor |
| Permissible ambient air temperature around the device | -40 |
MPN
LC1-D12BDC
