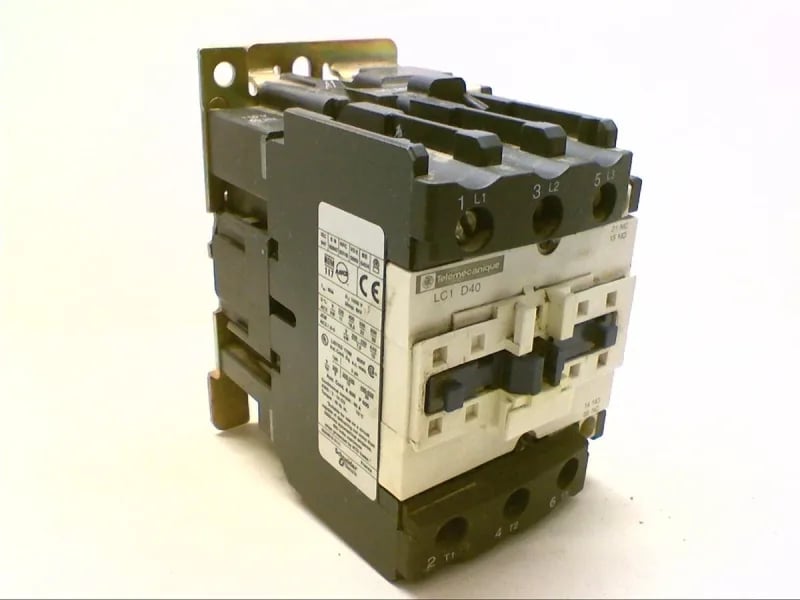

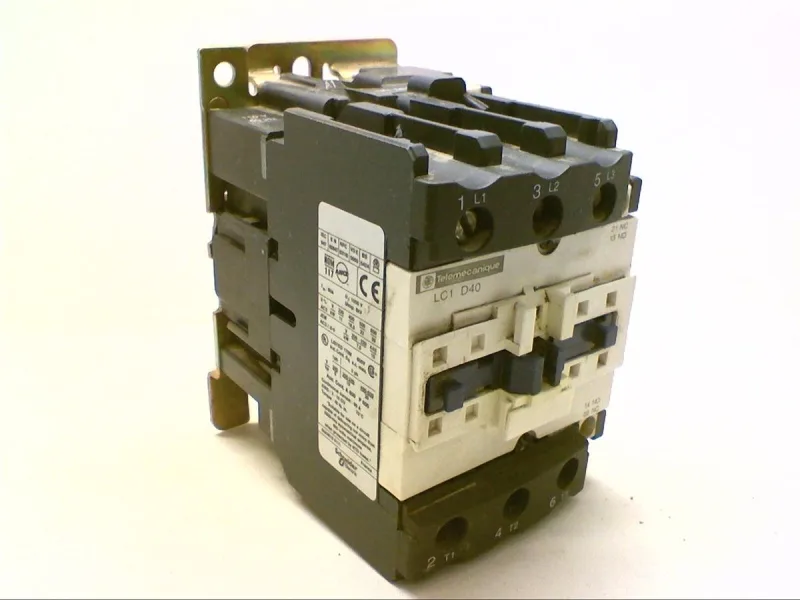

Schneider Electric LC1-D40-F5
MPNLC1-D40-F5
LC1-D40-F5 - CONTACTOR by TELEMECANIQUE
$381.85Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys D |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| Current | 40 A |
| Poles | 3 |
| Utilization category | AC-1 AC-2 AC-4 AC-3 |
| Mounting | Rail Plate |
| Altitude max | 0 |
| Depth | 119 |
| Width | 75 |
| Height | 127 |
| Standards | EN 60947-4-1 UL 508 CSA C22.2 No 14 IEC 60947-5-1 EN 60947-5-1 IEC 60947-4-1 |
| Range | TeSys |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Package_type | PCE |
| Fire_behavior | V1 conforming to UL 94 |
| Resistance | 850 °C conforming to IEC 60695-2-1 |
| Non-Overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Application_type | Motor control Resistive load |
| Supply voltage | Power circuit: 10 MOhm for control circuit |
| Device short name | LC1D |
| Mechanical robustness | Shocks contactor opened (10 Gn) Shocks contactor closed (15 gn) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Main_product_or_component_type | Contactor |
| Permissible ambient air temperature around the device | -60 |
MPN
LC1-D40-F5
