Schneider Electric LC1-D50-FD
MPNLC1-D50-FD
Obsolete

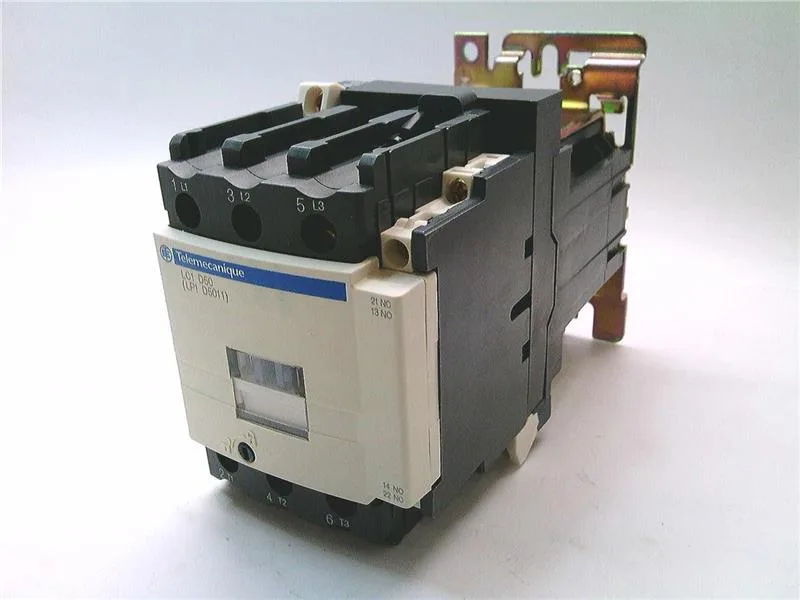

LC1-D50-FD - CONTACTOR by TELEMECANIQUE
$207.57Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys D |
| Climatic withstand | IACS E10 exposure to damp heat |
| Current | 50 A |
| Poles | 3 |
| Utilization category | AC-4 AC-2 AC-3 AC-2 |
| Mounting | Plate Rail |
| Altitude max | 0 |
| Depth | 119.38 |
| Width | 76.2 |
| Height | 127 |
| Standards | IEC 60947-5-1 EN 60947-4-1 CSA C22.2 No 14 EN 60947-5-1 UL 508 IEC 60947-4-1 |
| Range | TeSys |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP2X VDE 0106 IP2X IEC 60529 |
| Package_type | PCE |
| Fire_behavior | V1 conforming to UL 94 |
| Resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Non-Overlap time | 1.5 ms on energisation between NC and NO contacts 1.5 ms on de-energisation between NC and NO contacts |
| Application_type | Resistive load Motor control |
| Supply voltage | Power circuit 10 MOhm for control circuit |
| Device short name | LC1D |
| Mechanical robustness | Shocks contactor closed 15 gn) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor opened 10 Gn) |
| Main_product_or_component_type | Contactor |
| Ordering and shipping details (Category) | 22358-CTR,TESYS D,OPEN,40-65 A DC |
| Permissible ambient air temperature around the device | -76 |
MPN
LC1-D50-FD
