Schneider Electric LC1D1150046M7
MPNLC1D1150046M7
Active

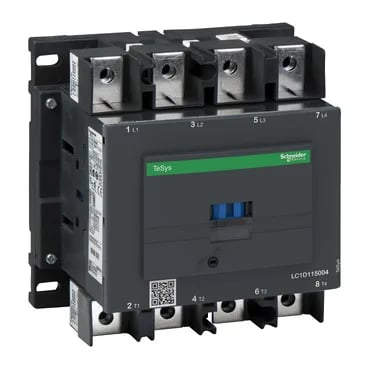

TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 200 A - 220 V AC 50/60 Hz coil
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Control circuit type | AC at 50/60 Hz |
| Product or component type | Contactor |
| Climatic withstand | conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil voltage | 220 V AC 50/60 Hz |
| Voltage | Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Control circuit voltage limits | 0.3...0.5 Uc (-40...70 °C):drop-out AC 50/60 Hz 0.8...1.15 Uc (-40...55 °C):operational AC 50/60 Hz 1...1.15 Uc (55...70 °C):operational AC 50/60 Hz |
| [Ue] rated operational voltage | Power circuit: Power circuit: <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 250 A 40 °C - 10 min for power circuit 550 A 40 °C - 1 min for power circuit 950 A 40 °C - 10 s for power circuit 1100 A 40 °C - 1 s for power circuit |
| Breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Ie] rated operational current | 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
All specifications
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 200 A (at 60 °C) for power circuit |
| Inrush power in | 280...350 VA 60 Hz cos phi 0.8 (at 20 °C) 280...350 VA 50 Hz cos phi 0.8 (at 20 °C) |
| Power dissipation per pole | 24 W AC-1 |
| Hold-in power consumption in | 2...18 VA 60 Hz cos phi 0.3 (at 20 °C) 2...18 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Poles description | 4P |
| Pole contact composition | 4 NO |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Mounting support | Rail Plate |
| Connections - terminals | Control circuit: lugs-ring terminals - external diameter: 8 mm Power circuit: lugs-ring terminals - external diameter: 25 mm Power circuit: bars 1 - busbar cross section: 5 x 25 mm |
| Pollution degree | 3 |
| Operating altitude | 0...3000 m |
| Depth | 115 mm |
| Width | 155 mm |
| Height | 158 mm |
| Electrical durability | 0.8 Mcycles 200 A AC-1 at Ue <= 440 V |
| Mechanical durability | 8 Mcycles |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 |
| Range | TeSys |
| Operating time | 6...20 ms opening 20...50 ms closing |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Heat dissipation | 3...8 W at 50/60 Hz |
| Protective cover | With |
| Average impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Device short name | LC1D |
| Tightening torque | Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 Power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8 Power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8 Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5 |
| Compatibility code | LC1D |
| Overvoltage category | III |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (6 Gn for 11 ms) |
| Associated fuse rating | 250 A gG at 200 A gG at <= 690 V coordination type 2 for power circuit |
| Maximum operating rate | 2400 cyc/h at 60 °C |
| Safety reliability level | B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Irms rated making capacity | 1260 A at 440 V for power circuit conforming to IEC 60947 |
| Permissible ambient air temperature around the device | -40...60 °C 60...70 °C with derating |
MPN
LC1D1150046M7
