Schneider LC1D115004G6 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Control circuit type | AC 60 Hz |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| Coil voltage | 120 V AC 60 Hz |
| Voltage | Power circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1 |
| Control circuit voltage limits | 0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational AC 60 Hz 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 60 Hz 1...1.1 Uc (131...158 °F (55...70 °C)):operational AC 60 Hz |
| [Ue] rated operational voltage | Power circuit Power circuit <= 460 V DC |
| [Uimp] rated impulse withstand voltage | 8 kV IEC 60947 |
| [Icw] rated short-time withstand current | 250 A 104 °F (40 °C) - 10 min for power circuit 550 A 104 °F (40 °C) - 1 min for power circuit 950 A 104 °F (40 °C) - 10 s for power circuit 1100 A 104 °F (40 °C) - 1 s for power circuit |
| Breaking capacity | 1100 A at 440 V for power circuit conforming to IEC 60947 |
| [Ie] rated operational current | 200 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit |
| Parameter | Value |
|---|---|
| [Ith] conventional free air thermal current | 200 A (at 140 °F (60 °C)) for power circuit |
| Inrush power in | 300 VA 60 Hz cos phi 0.8 (at 68 °F (20 °C)) |
| Power dissipation per pole | 24 W AC-1 |
| Hold-in power consumption in | 22 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) |
| Poles description | 4P |
| Pole contact composition | 4 NO |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Connections - terminals | Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: solid without cable end Power circuit: connector 1 0.02...0.2 in² (10...120 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.02...0.08 in² (10...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.02...0.2 in² (10...120 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.02...0.08 in² (10...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.02...0.2 in² (10...120 mm²) - cable stiffness: solid without cable end Power circuit: connector 2 0.02...0.08 in² (10...50 mm²) - cable stiffness: solid without cable end |
| Pollution degree | 3 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 5.2 in (132 mm) |
| Width | 5.9 in (150 mm) |
| Height | 6.2 in (158 mm) |
| Electrical durability | 0.8 Mcycles 200 A AC-1 <= 440 V |
| Mechanical durability | 8 Mcycles |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 |
| Range | TeSys |
| Category | US10I1222359 |
| Operating time | 6...20 ms opening 20...50 ms closing |
| Coil technology | Without built-in suppressor module |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Heat dissipation | 3...8 W at 60 Hz |
| Protective cover | With |
| Average impedance | 0.6 mOhm - Ith 200 A 50 Hz for power circuit |
| Device short name | LC1D |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2 |
| Compatibility code | LC1D |
| Overvoltage category | III |
| Protective treatment | THIEC 60068-2-30 |
| Contactor application | Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 6 Gn for 11 ms) |
| Associated fuse rating | 250 A gG at 200 A gG at <= 690 V coordination type 2 for power circuit |
| Maximum operating rate | 2400 cyc/h at 60 °C |
| Safety reliability level | B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Irms rated making capacity | 1260 A at 440 V for power circuit conforming to IEC 60947 |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |

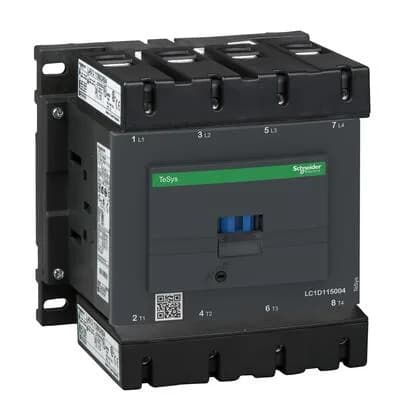

The LC1D115004G6 is a Schneider TeSys Deca 4-pole contactor rated 115 A in AC-3 duty and 200 A in AC-1, with a 120 V AC 60 Hz coil. It is an open-type, non-reversing full-voltage contactor with an IP2X finger-safe cover. It carries UL 60947-4-1, CSA C22.2 No 14, and IEC 60947-4-1/5-1 certifications, with a pollution degree 3 rating and V-1 flammability class per UL 94.
