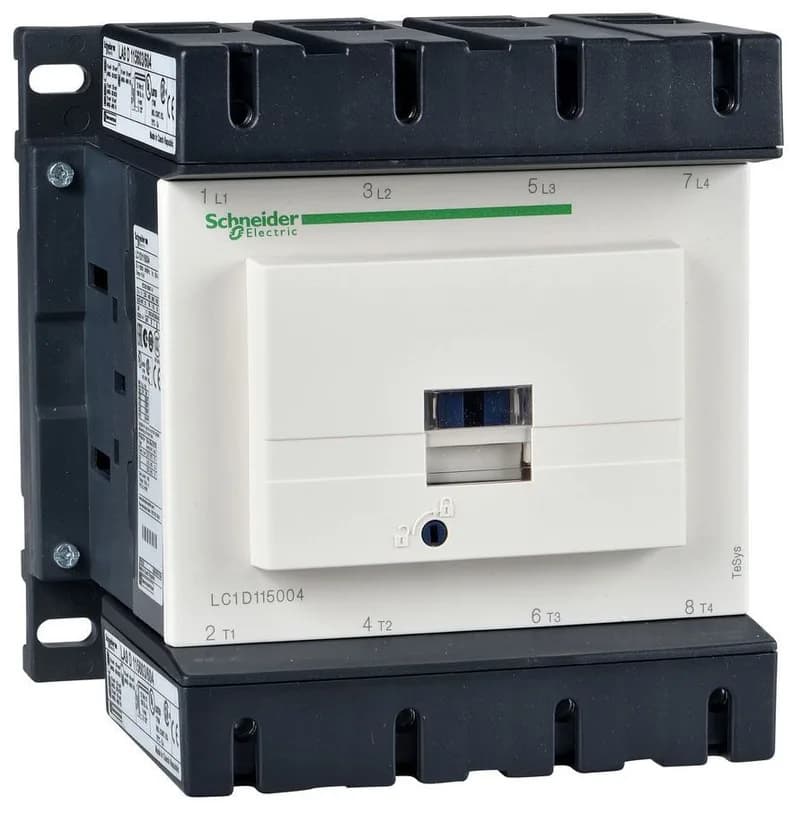

Schneider Electric LC1D115004M7
MPNLC1D115004M7
Obsolete
Square D LC1D115004M7 200A Iec Contactor|Square D LC1D115004M7 200A Iec Contactor
$265.43Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control circuit type | AC 50/60 Hz |
| Main product or component type | Contactor |
| Utilization category | AC-1 AC-3 AC-3e AC-4 |
| IP rating | IP20 |
| Temp operating max | 60 °C |
| Temp operating min | -40 °C |
| Pollution degree | 3 |
| Depth | 5.2 in (132 mm) |
| Width | 5.9 in (150 mm) |
| Height | 6.2 in (158 mm) |
| Electrical life cycles | 0.8 Mcycles 200 A AC-1 <= 440 V |
| Mechanical life cycles | 8 Mcycles |
| Application | Resistive load |
| Fire behavior | V1 conforming to UL 94 |
| Operating time | 6...20 ms opening 20...50 ms closing |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
MPN
LC1D115004M7
