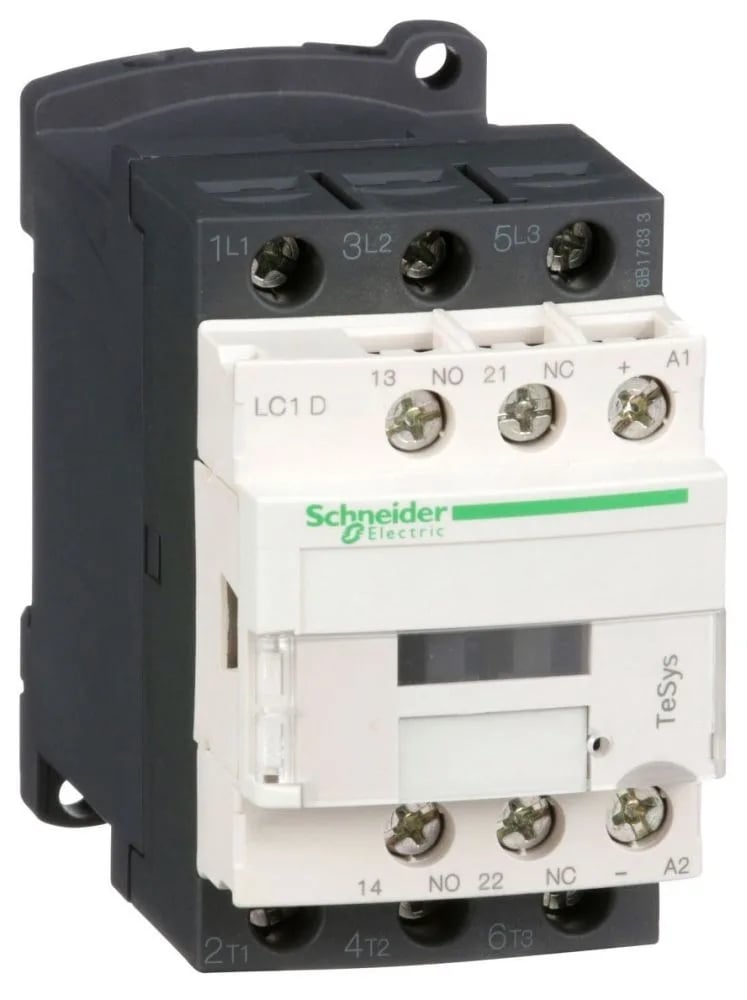

Schneider Electric LC1D126BLS207
MPNLC1D126BLS207
Active
Square D LC1D126BLS207 Tesys D 12A|Square D LC1D126BLS207 Tesys D 12A
$191.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 IEC 60947-1 Annex Q category D |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 AC-3e |
| Mounting support | Rail Plate |
| Connections - terminals | Control circuit: lugs-ring terminals - external diameter: 0.3 in (8 mm) Power circuit: lugs-ring terminals - external diameter: 0.4 in (9.5 mm) |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 3.7 in (95 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.03 in (77 mm) |
All specifications
| Parameter | Value |
|---|---|
| Electrical durability | 2 Mcycles 12 A AC-3 0.8 Mcycles 25 A AC-1 2 Mcycles 12 A AC-3e <= 440 V |
| Mechanical durability | 30 Mcycles |
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 EN 45545: R22 HL3 EN 45545: R26 HL3 DIN 5510-2 |
| Range | TeSys TeSys Deca |
| Category | US10I1222354 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Device short name | LC1D |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5 Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5 Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals pozidriv No 2 M3.5 Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals pozidriv No 2 M3.5 |
| Compatibility code | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms) |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
MPN
LC1D126BLS207
