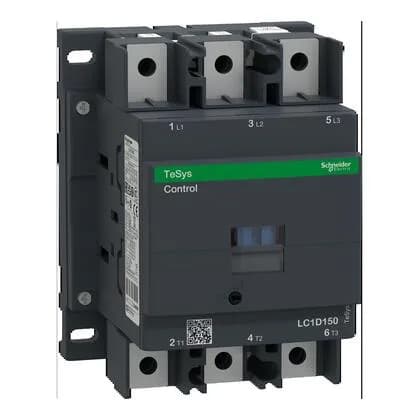

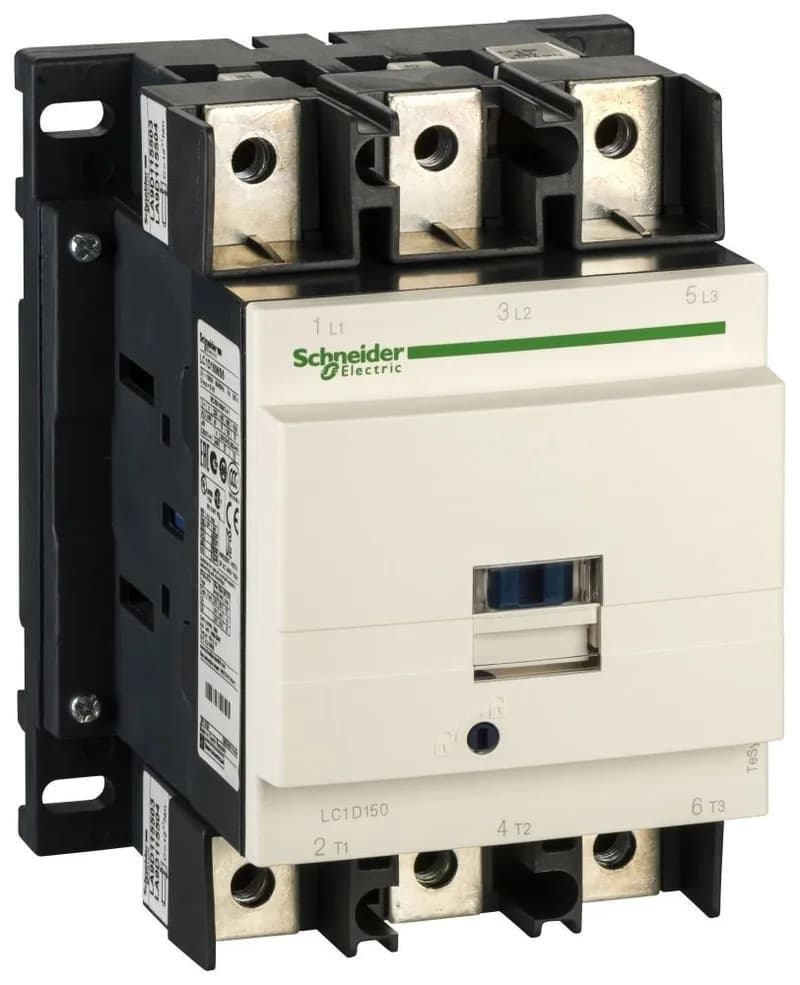

Schneider Electric LC1D1506M7
MPNLC1D1506M7
Active
*CONTACTOR 600VAC 150AMP IEC OPTIONS|*CONTACTOR 600VAC 150AMP IEC OPTIONS
$930.00 – $1,300.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-4 AC-1 AC-3e |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 5.4 in (136 mm) |
| Width | 4.7 in (120 mm) |
| Height | 6.2 in (158 mm) |
All specifications
| Parameter | Value |
|---|---|
| Product weight | 5.5 lb(US) (2.5 kg) |
| Standards | CSA C22.2 No 14 EN 60947-4-1 IEC 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 |
| Range | TeSys |
| Category | US10I1222359 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Protective treatment | THIEC 60068-2-30 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 6 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
MPN
LC1D1506M7
