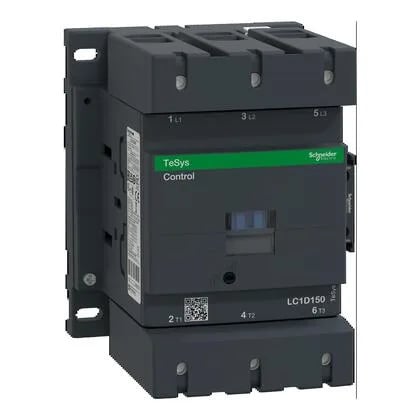

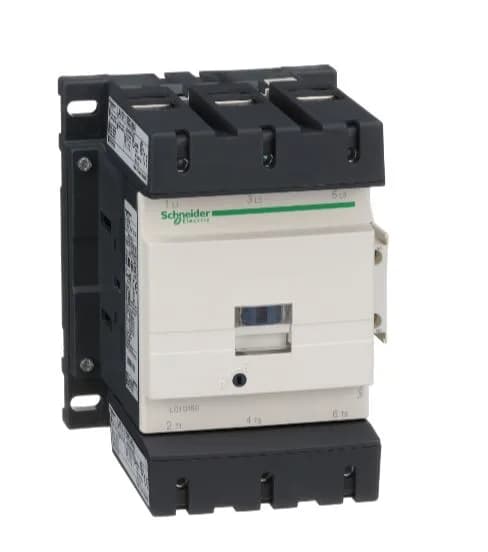

Schneider Electric LC1D150FE7

Schneider LC1D150FE7 TeSys Deca contactor, 150 A, 100 hp, 115 VAC coil

MPNLC1D150FE7
Active

Schneider LC1D150FE7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$213.36Ref. price · indicative, final on quote
Schneider Electric LC1D150FE7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D150FE7 key specifications
ParameterValue
Range of productTeSys Deca
Product or component typeContactor
Climatic withstandIACS E10 exposure to damp heat
[Ue] rated operational voltagePower circuit Power circuit 10 MOhm for signalling circuit
Poles description3P
Utilisation categoryAC-3 AC-4 AC-1 AC-3e
IP degree of protectionIP20 front face IEC 60529
Mounting supportRail Plate
Operating altitude0...9842.52 ft (0...3000 m)
Depth5.4 in (136 mm)
Width4.7 in (120 mm)
Height6.2 in (158 mm)

All specifications

LC1D150FE7 additional specifications
ParameterValue
StandardsCSA C22.2 No 14 EN 60947-4-1 IEC 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1
RangeTeSys
CategoryUS10I1222359
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Non-overlap time1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short nameLC1D
Protective treatmentTHIEC 60068-2-30
Contactor applicationResistive load Motor control
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 6 Gn for 11 ms)
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC1D150FE7 is a Schneider TeSys Deca IEC contactor rated 150 A continuous current and 100 hp at 480 VAC, switching motor loads in AC-3 and AC-4 duty with a 115 VAC 50/60 Hz coil. It carries UL, CSA, CCC, CE, UKCA, and Marine certifications, and is sealed to IP2X with a V1 flammability rating per UL 94.

The LC1D150FE7 shares the same 150 A frame as the LC1D150F7 but uses a 115 VAC coil instead of 110 VAC; the LC1D150F7 also carries a 1NO-1NC auxiliary contact block, while the LC1D150FE7 ships without auxiliary contacts listed.

MPN
LC1D150FE7
