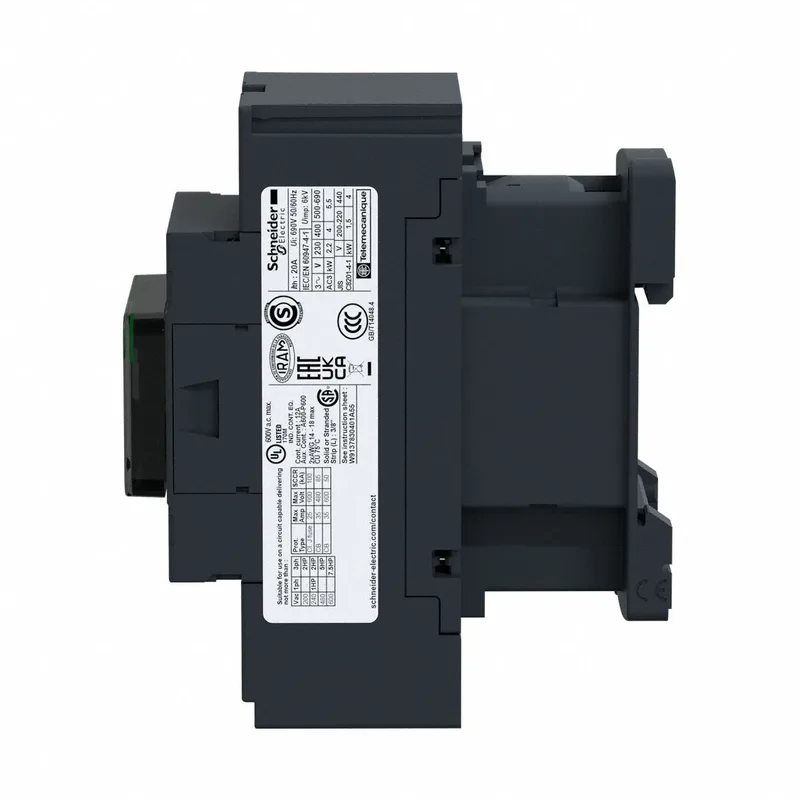

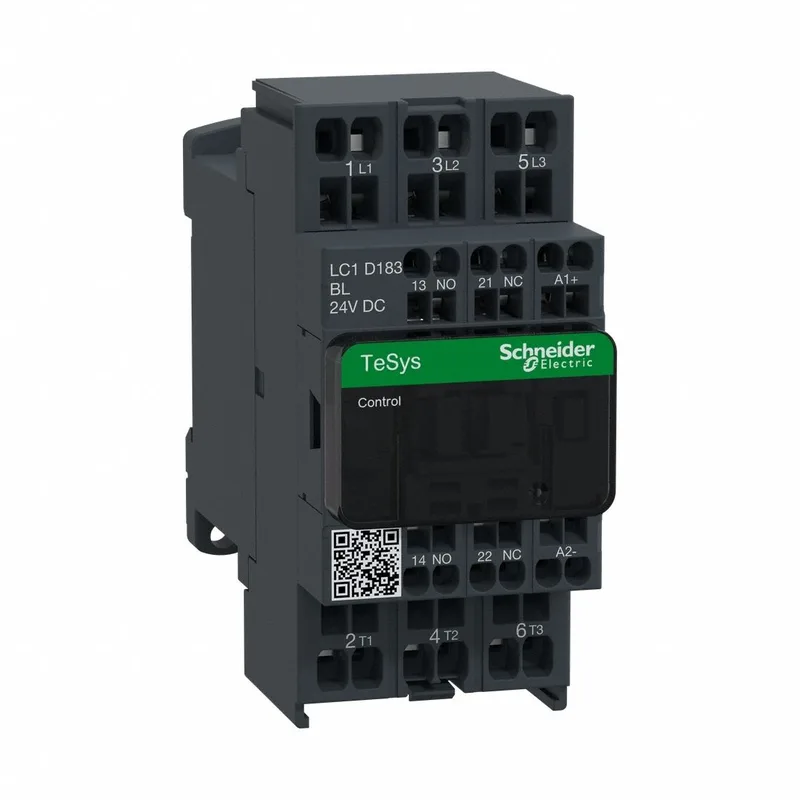

Schneider Electric LC1D183BL

Schneider Electric LC1D183BL

MPNLC1D183BL
Obsolete

IEC Contactor, TeSys Deca, Non-Reversing, 18A, 10HP @ 480VAC, 3PH, 3P, 3NO, 24VDC|IEC Contactor, TeSys Deca, Non-Reversing, 18 Amp, 10 Horse Power @ 480 Volt AC, 3-Phase, 3-Pole, 3 Normally Open Contacts, 24 Volt DC Low Consumption Coil, Open Style

$200.09 – $281.52Ref. price · indicative, final on quote
Schneider Electric LC1D183BL datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

LC1D183BL key specifications
ParameterValue
Range of productTeSys Deca
Product or component typeContactor
Climatic withstandconforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
[Ue] rated operational voltagePower circuit: Power circuit: 10 MOhm for signalling circuit
Poles description3P
Utilisation categoryAC-3 AC-4 AC-1 AC-3e
IP degree of protectionIP20 front face conforming to IEC 60529
Mounting supportRail Plate
Operating altitude0...3000 m
Depth101 mm
Width45 mm
Height99 mm

All specifications

LC1D183BL additional specifications
ParameterValue
Product weight0.49 kg
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Non-overlap time1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short nameLC1D
Protective treatmentTH conforming to IEC 60068-2-30
Contactor applicationResistive load Motor control
Mechanical robustnessVibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor open (10 Gn for 11 ms) Shocks contactor closed (15 Gn for 11 ms)
Permissible ambient air temperature around the device-40...60 °C 60...70 °C with derating
