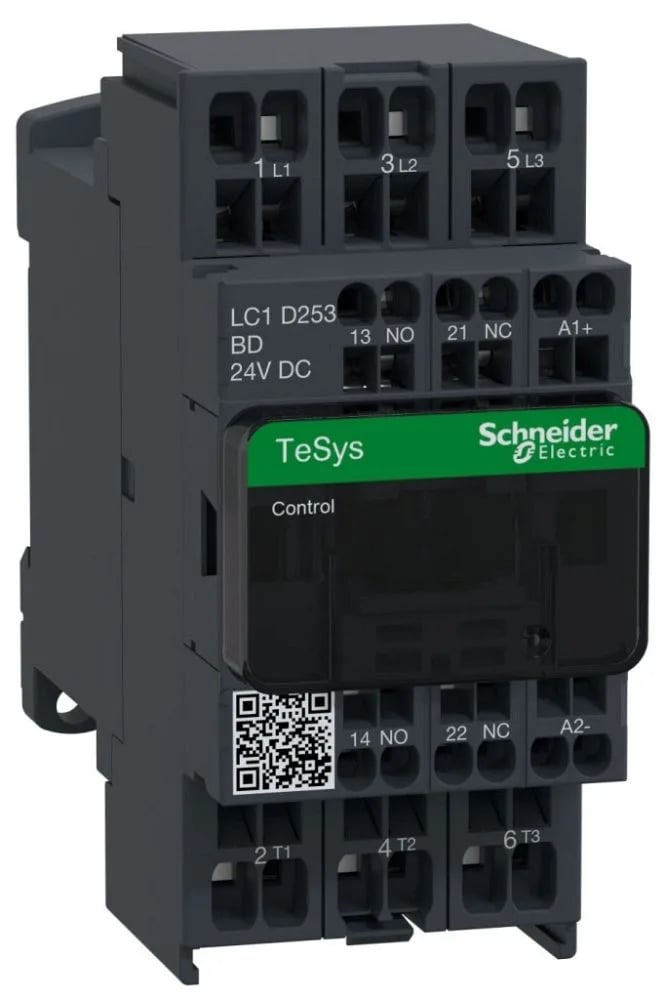

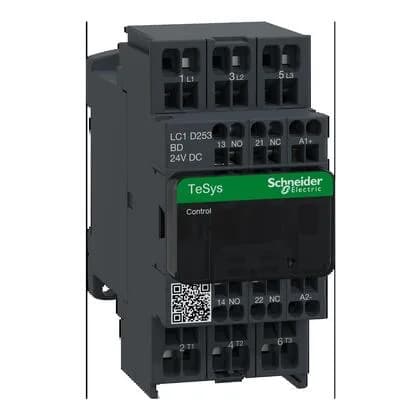

Schneider Electric TeSys Deca LC1D253BD IEC contactor, 3-pole, 25 A AC-3, 40 A AC-1, 15 hp at 480 VAC, 24 VDC coil, open style, IP2X, rail/plate mount.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| [Ue] rated operational voltage | Power circuit Power circuit 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-1 AC-4 AC-3 AC-3e |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.0 in (101 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.9 in (99 mm) |
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1 |
| Category | US10I1222355 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Protective treatment | THIEC 60068-2-30 |
| Contactor application | Resistive load Motor control |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 8 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
The LC1D253BD: Its open-style enclosure carries an IP2X finger-safe rating and mounts on a rail or plate; the coil draws 24 VDC at 1562 ohms, holding in below 18 V and dropping out cleanly.
The 25 A AC-3 inductive rating covers motor starting and running; the same contactor handles 40 A in AC-1 resistive duty, so it can also switch heater banks or lighting loads within that envelope.
