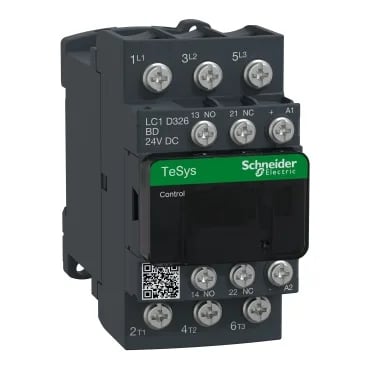

Schneider Electric LC1D326BDC
MPNLC1D326BDC
Active
Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 32A, 24VDC coil, Lugs-ring terminals
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Identification
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys Deca |
| Application | Resistive load Motor control |
Ratings & Performance
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit: Power circuit: 10 MOhm for signalling circuit |
| Utilisation category | AC-4 AC-1 AC-3 AC-3e |
Contacts & Poles
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
Environmental
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X front face for main circuit conforming to IEC 60529 IP2X front face for coil circuit conforming to IEC 60529 |
| Operating altitude | 3000 m without derating |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Vibrations contactor closed (4 Gn, 5...300 Hz) conforming to IEC 60068-2-6 Shocks 11 ms contactor closed (15 gn) conforming to IEC 60068-2-27 Shocks 11 ms contactor open (8 gn) conforming to IEC 60068-2-27 |
| Protective treatment / pollution degree | TH conforming to IEC 60068-2-30 |
| Fire resistance | 850 °C conforming to IEC 60695-2-11 |
Approvals
| Parameter | Value |
|---|---|
| Standards | IEC 60947-1 IEC 60947-4-1 GB/T 14048.4 |
Mechanical
| Parameter | Value |
|---|---|
| Width | 45 mm |
| Height | 85 mm |
| Depth | 101 mm |
MPN
LC1D326BDC
