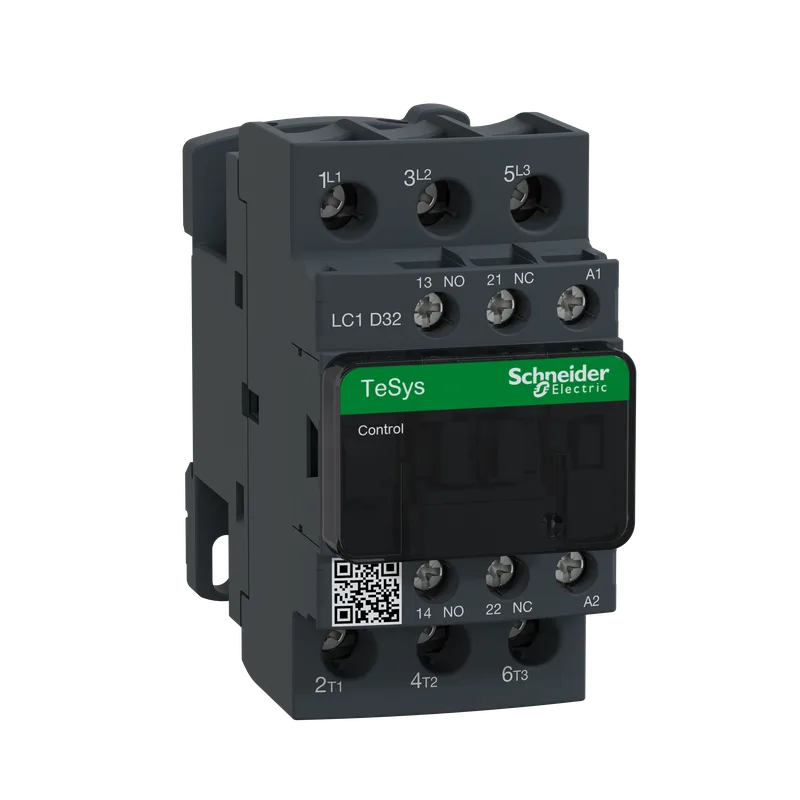

Schneider Electric LC1D32R7
MPNLC1D32R7
Active
IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 440VAC 50/60Hz coil, open
$217.04Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Series / range | TeSys TeSys Deca |
| Application | Resistive load Motor control |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit Power circuit 10 MOhm for signalling circuit |
| Utilisation category | AC-3 AC-1 AC-3e AC-3e |
| Parameter | Value |
|---|---|
| Pole configuration | 3P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 front face IEC 60529 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 8 Gn for 11 ms) |
| Protective treatment / pollution degree | THIEC 60068-2-30 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1 |
| Parameter | Value |
|---|---|
| Width | 1.8 in (45 mm) |
| Height | 3.3 in (85 mm) |
| Depth | 3.6 in (92 mm) |
MPN
LC1D32R7
