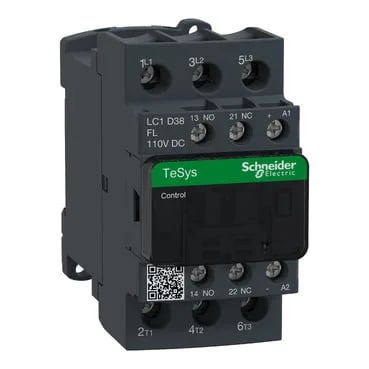

Schneider Electric LC1D38FL

Schneider LC1D38FL TeSys D contactor, 38 A, 110 V DC coil (obsolete)

MPNLC1D38FL
Obsolete

Schneider Electric TeSys D LC1D38FL contactor, 3-pole, 38 A AC-3 rating, 110 V DC low-consumption coil, IP20, plate/rail mount, discontinued.

$232.20Ref. price · indicative, final on quote
Schneider Electric LC1D38FL datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D38FL key specifications
ParameterValue
Range of productTeSys Deca
Product or component typeContactor
Climatic withstandconforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
[Ue] rated operational voltagePower circuit: Power circuit: 10 MOhm for signalling circuit
Poles description3P
Utilisation categoryAC-4 AC-1 AC-3 AC-3e
IP degree of protectionIP20 front face conforming to IEC 60529
Mounting supportPlate Rail
Operating altitude0...3000 m
Depth101 mm
Width45 mm
Height85 mm

All specifications

LC1D38FL additional specifications
ParameterValue
Product weight0.54 kg
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1
RangeTeSys TeSys Deca
Fire resistance850 °C conforming to IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Non-overlap time1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short nameLC1D
Protective treatmentTH conforming to IEC 60068-2-30
Contactor applicationMotor control Resistive load
Mechanical robustnessVibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (8 Gn for 11 ms)
Permissible ambient air temperature around the device-40...60 °C 60...70 °C with derating

Product details

Overview

The LC1D38FL is a Schneider TeSys D 3-pole contactor rated 38 A in AC-3 duty for motor switching up to 440 V, with a 110 V DC low-consumption coil that holds at nominal and drops out cleanly below the threshold. It carries UL, CCC, CSA Marine, UKCA, EAC, and CB Scheme certifications, and is sealed to IP20 with a V1 flammability rating per UL 94.

Schneider discontinued the LC1D38FL on 2020-11-01. For a line-down or last-time-buy, an RFQ confirms available quantity and lead time for this exact coil and contact build.

MPN
LC1D38FL
