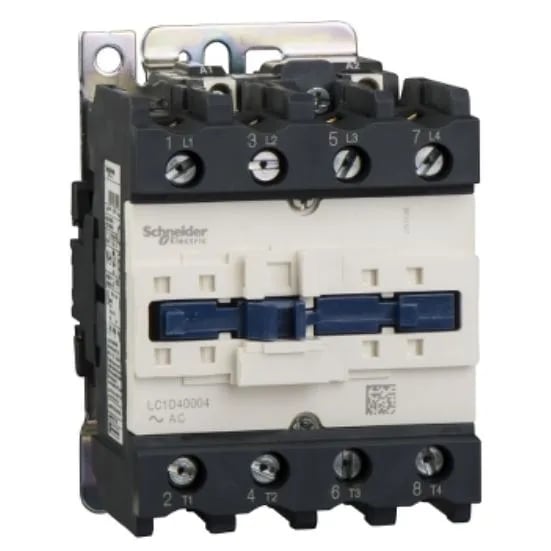

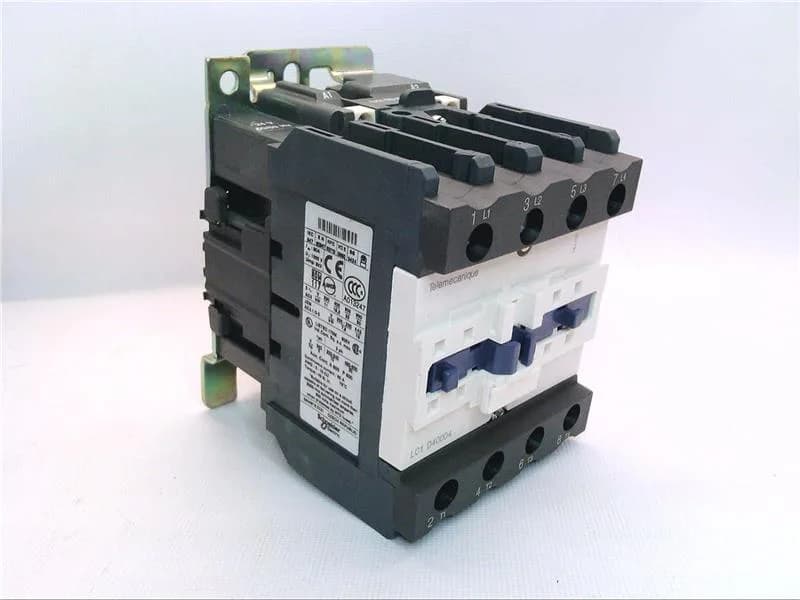

Schneider LC1D40004B7 TeSys Deca contactor, 4-pole, 60 A AC-1, 24 V AC coil

MPNLC1D40004B7

Obsolete

Schneider Electric TeSys Deca LC1D40004B7 contactor, 4 poles, AC-1 440 V 60 A, coil 24 V AC, open-style, plate/rail mount, UL 508, IEC 60947-4-1, discontinued.

$453.72Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC1D40004B7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC1D40004B7 key specifications
Parameter	Value
Range of product	TeSys Deca
Product or component type	Contactor
[Ue] rated operational voltage	Power circuit 10 MOhm for control circuit
Poles description	4P
Utilisation category	AC-1 AC-3 AC-3e AC-4
IP degree of protection	IP2X IEC 60529 IP2X VDE 0106
Mounting support	Rail Plate
Operating altitude	9842.52 ft (3000 m) without derating
Depth	4.9 in (125 mm)
Width	3.3 in (85 mm)
Height	5 in (127 mm)
Standards	UL 508 IEC 60947-5-1 IEC 60947-4-1 EN 60947-4-1 EN 60947-5-1 CSA C22.2 No 14

All specifications

LC1D40004B7 additional specifications
Parameter	Value
Category	22357-CTR,TESYS D,OPEN,40-65A AC
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Non-overlap time	1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts
Device short name	LC1D
Protective treatment	TH 3)IEC 60068
Contactor application	Resistive load
Mechanical robustness	Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz)
Permissible ambient air temperature around the device	23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc

Product details

Overview

The LC1D40004B7 is a Schneider TeSys Deca contactor with 4 poles rated 60 A in AC-1 at 440 V, energised by a 24 V AC coil, built for resistive load switching in panel-mount or plate-mount applications. It carries UL 508, IEC 60947-4-1, and CSA C22.2 No 14 certifications, with an IP2X finger-safe front and V1 flammability rating per UL 94.

An RFQ confirms available quantity and lead time for line-down or last-time-buy needs.

The LC1D40004B7 carries 4 poles at 60 A AC-1, while the LC1DT25U7 is a 4-pole contactor rated 25 A AC-1 with 1NO-1NC auxiliary contacts built in. Pick the LC1D40004B7 when the load requires 60 A resistive switching; pick the LC1DT25U7 when the BOM calls for 25 A and integrated auxiliaries.
