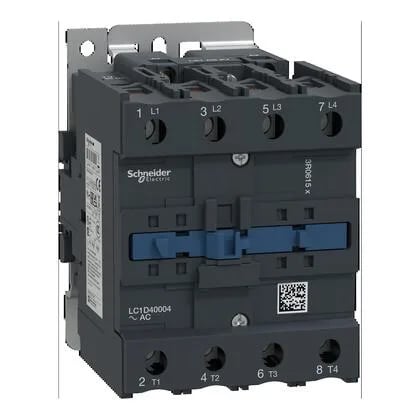

LC1D40004G6 - Schneider Electric
MPNLC1D40004G6
Obsolete
IEC contactor, TeSys D, nonreversing, 60A resistive, 4 pole, 4 NO, 120VAC 60Hz coil, open style|IEC contactor, TeSys D, nonreversing, 60A resistive, 4 pole, 4 NO, 120VAC 60Hz coil, open style
$625.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| [Ue] rated operational voltage | Power circuit 690 V AC 25...400 Hz |
| [Ie] rated operational current | 60 A (at 10 MOhm for control circuit |
| Poles description | 4P |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X VDE 0106 |
| Mounting support | Plate Rail |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Standards | CSA C22.2 No 14 EN/IEC 60947-5-1 UL 60947-4-1 EN/IEC 60947-4-1 |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
All specifications
| Parameter | Value |
|---|---|
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Protective treatment | THIEC 60068-2-30 |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | 23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc |
MPN
LC1D40004G6
