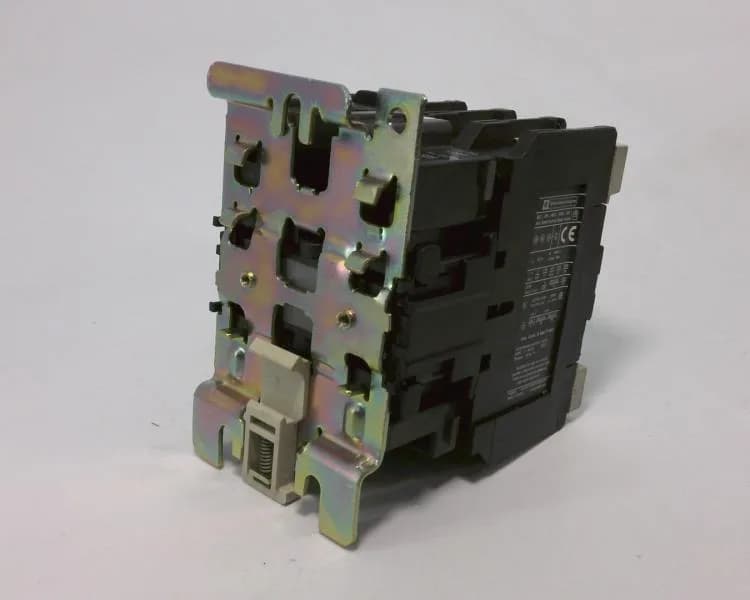

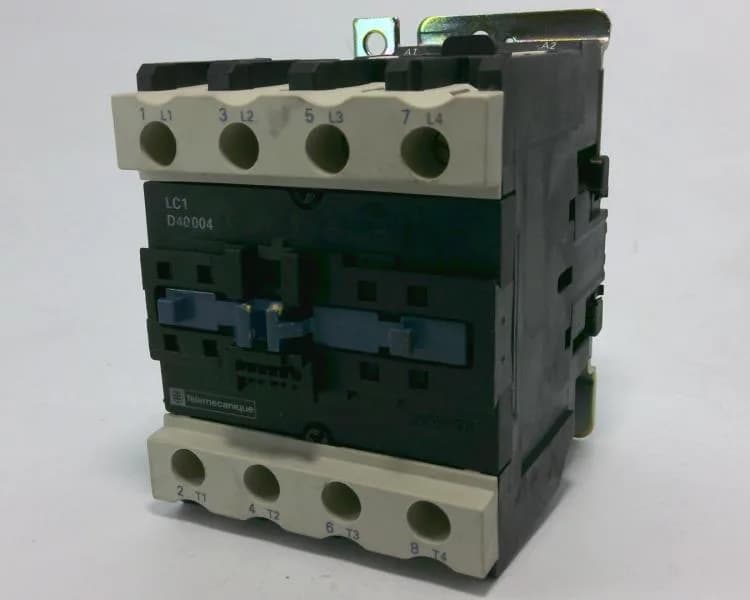

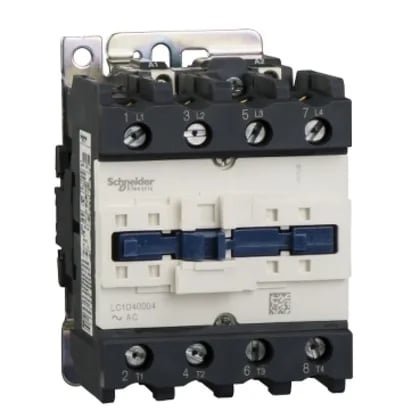

Schneider Electric LC1D40004U7
MPNLC1D40004U7
Obsolete
CONTACTOR 575VAC|SQD LC1D40004U7 CONTACTOR 575VAC
$618.53Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 4P |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Rail Plate |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 4.9 in (125 mm) |
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 CSA C22.2 No 14 |
All specifications
| Parameter | Value |
|---|---|
| Category | 22357-CTR,TESYS D,OPEN,40-65A AC |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Protective treatment | TH 3)IEC 60068 |
| Contactor application | Resistive load |
| Mechanical robustness | Shocks contactor closed 8 gn) Shocks contactor opened Vibrations contactor opened Vibrations contactor closed |
| Permissible ambient air temperature around the device | -76...176 °F (-60...80 °C) storage -40...140 °F (-40...60 °C) operation 140...158 °F (60...70 °C) with derating |
MPN
LC1D40004U7
