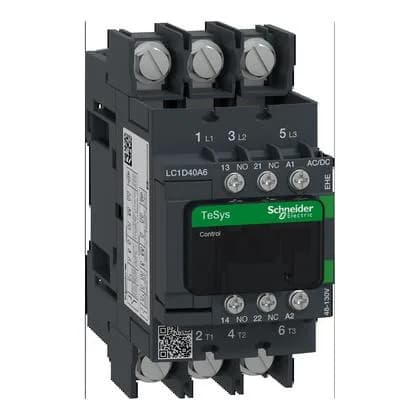

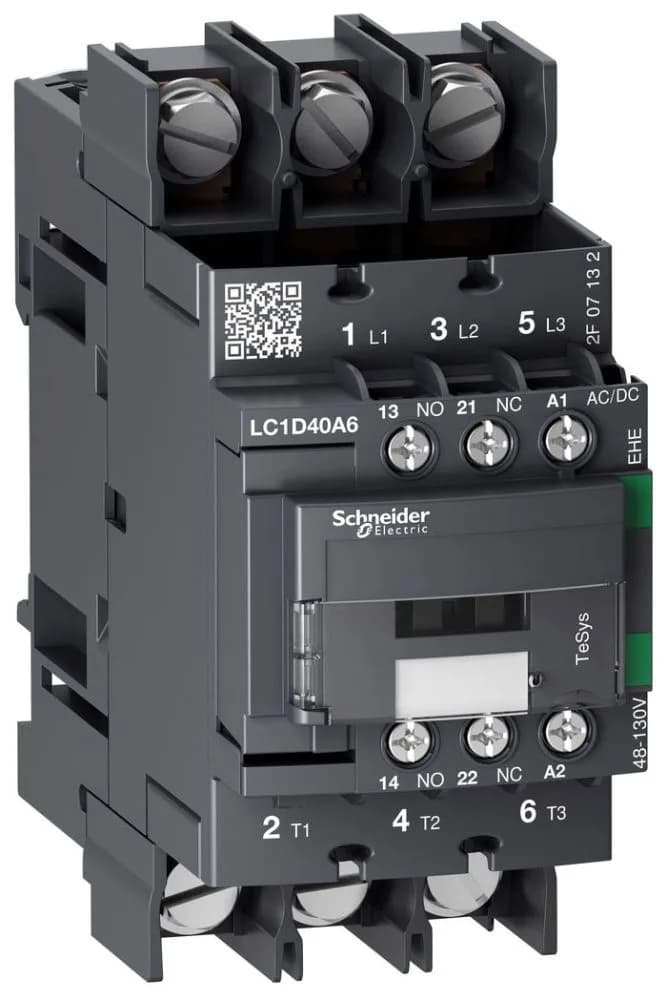

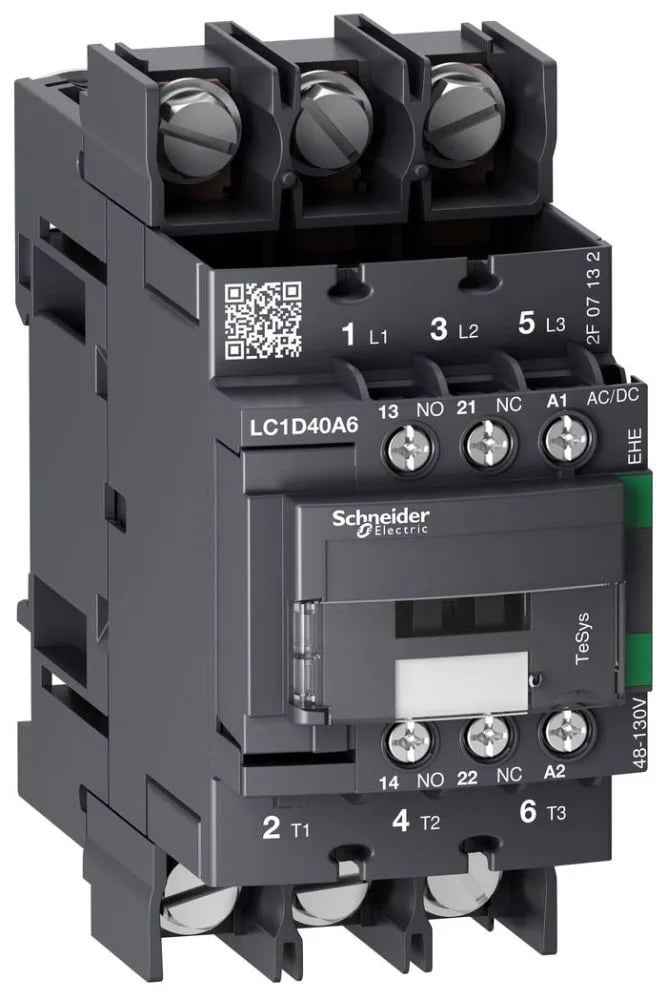

Schneider LC1D40A6EHE TeSys Deca contactor, 40 A, 3-pole, discontinued

MPNLC1D40A6EHE

Obsolete

Schneider Electric TeSys Deca Advanced LC1D40A6EHE IEC contactor, 3-pole, 40 A, 30 hp at 480 VAC, 48-130 VAC/VDC coil, open style, IP20, discontinued.

$414.00Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC1D40A6EHE datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC1D40A6EHE key specifications
Parameter	Value
Range of product	TeSys Deca Advanced
Product or component type	Contactor
Climatic withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
[Ue] rated operational voltage	Power circuit 10 MOhm for signalling circuit
Poles description	3P
Utilisation category	AC-3 AC-3e AC-1 AC-4
IP degree of protection	IP20 front face IEC 60529
Mounting support	Plate Rail
Operating altitude	0...9842.52 ft (0...3000 m)
Depth	4.7 in (120 mm)
Width	2.2 in (55 mm)
Height	4.8 in (122 mm)

All specifications

LC1D40A6EHE additional specifications
Parameter	Value
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
Category	US10I1222357
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short name	LC1D
Contactor application	Motor control Resistive load
Mechanical robustness	Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms)
Permissible ambient air temperature around the device	-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC1D40A6EHE is a Schneider TeSys Deca Advanced IEC contactor rated 40 A in AC-3 duty, switching a 30 hp motor at 480 VAC three-phase through its 3-pole, 3 NO main contacts. The coil accepts 48-130 VAC/VDC, and the open-style frame carries IP20 finger protection and certifications including CCC, CSA, EAC, UL, and DNV-GL.

For a panel originally built around this code, the LC1D40A6U7 is a close functional peer sharing the same 40 A, 3-pole frame, coil resistance of 1562 ohm, and plate/rail mounting — verify coil voltage range before substituting.
