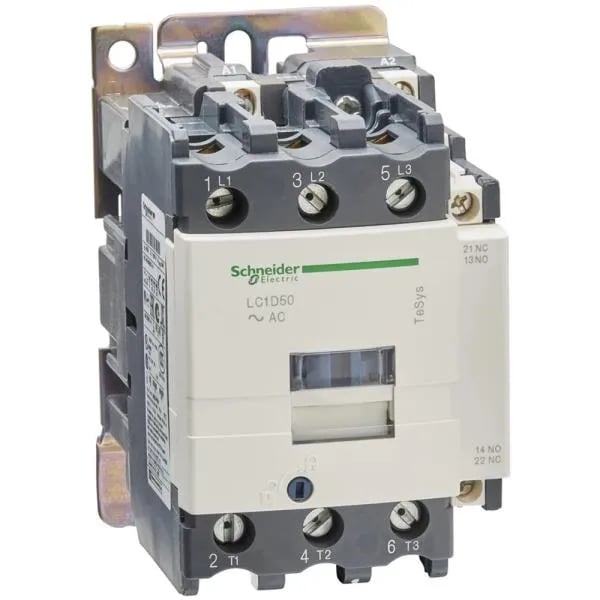

Schneider Electric LC1D506P7
MPNLC1D506P7
Active
LC1D506P7 - CONTACTOR by TELEMECANIQUE
$347.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | conforming to IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit: 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 AC-2 AC-4 |
| IP degree of protection | IP2X conforming to IEC 60529 IP2X conforming to VDE 0106 |
| Mounting support | Rail Plate |
| Operating altitude | 0...3000 m |
| Depth | 119 mm |
| Width | 75 mm |
| Height | 127 mm |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN 60947-5-1 UL 508 IEC 60947-5-1 EN 60947-4-1 CSA C22.2 No 14 IEC 60947-4-1 |
| Range | TeSys |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor opened (10 Gn) Shocks contactor closed (15 gn) Vibrations contactor opened (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | -60...80 °C storage -40...60 °C operation 60...70 °C with derating |
MPN
LC1D506P7
