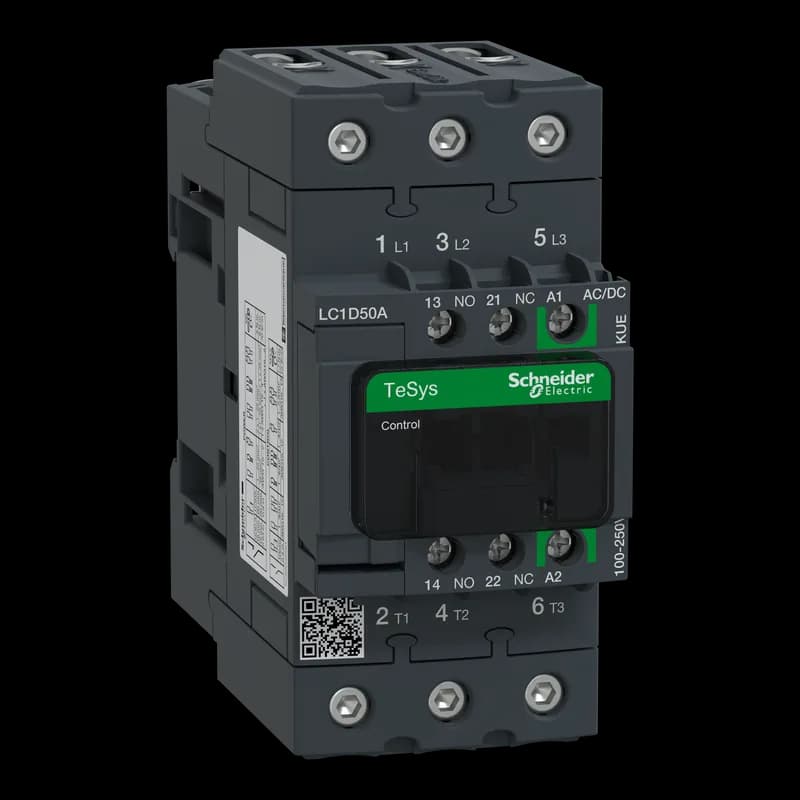

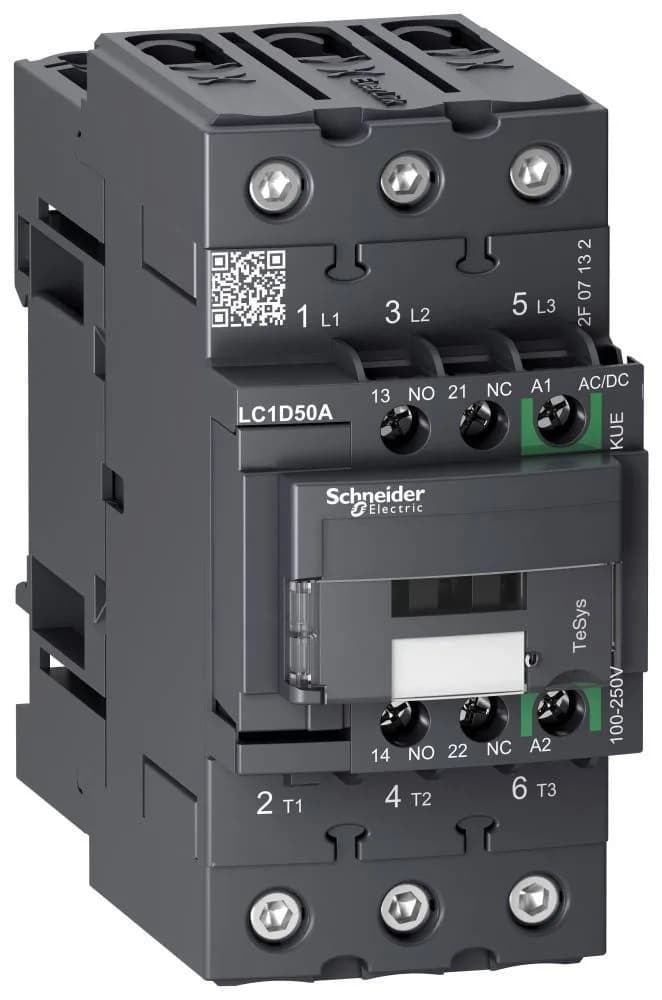

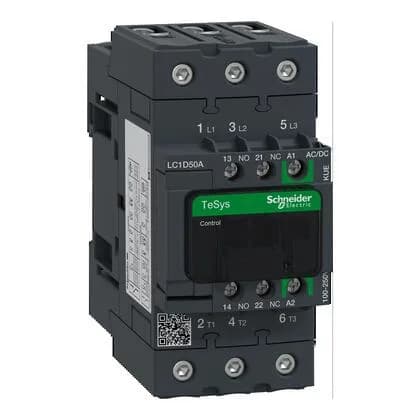

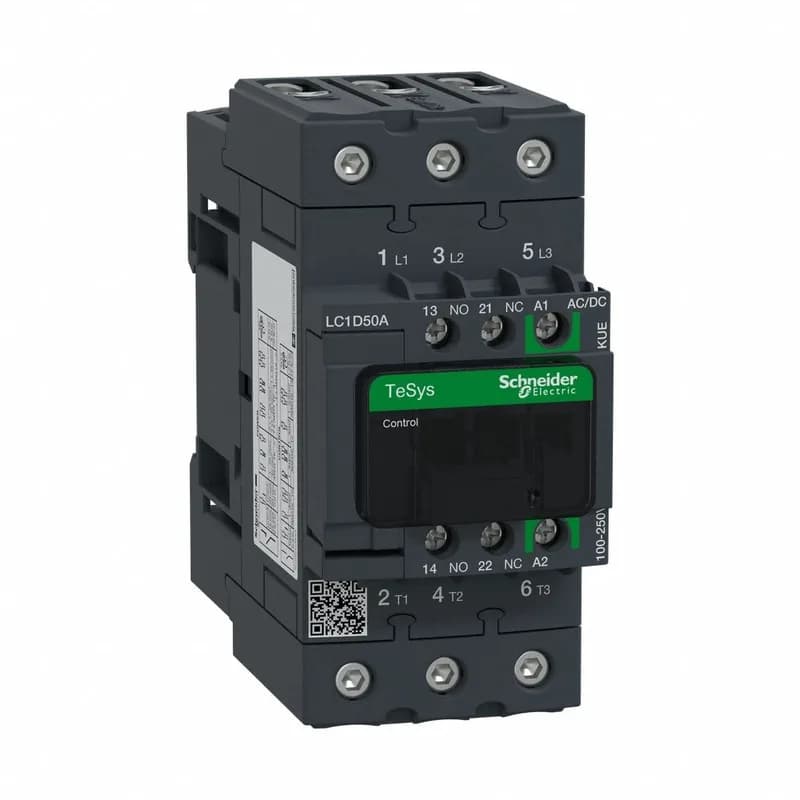

Schneider Electric LC1D50AKUE
MPNLC1D50AKUE
Active
TESYS D CTR 50A 100-250VAC/DC|TESYS D CTR 50A 100-250VAC/DC
$317.42 – $414.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca Advanced |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat |
| [Ue] rated operational voltage | Power circuit 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-1 AC-3 AC-3e |
| IP degree of protection | IP20 front face IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.7 in (120 mm) |
| Width | 2.2 in (55 mm) |
| Height | 4.8 in (122 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1 |
| Category | US10I1222356 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
MPN
LC1D50AKUE
