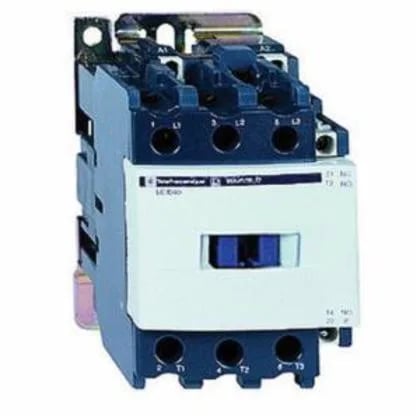

Schneider Electric TeSys Deca LC1D50FE7 contactor, 3-pole, 50 A, IEC 60947-4-1, UL 508, IP2X, plate/rail mount, discontinued.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-2 AC-1 AC-3 AC-3 |
| IP degree of protection | IP2X VDE 0106 IP2X IEC 60529 |
| Mounting support | Plate Rail |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.6 in (118 mm) |
| Width | 2.8 in (70 mm) |
| Height | 4.8 in (122 mm) |
| Parameter | Value |
|---|---|
| Standards | IEC 60947-5-1 EN 60947-4-1 IEC 60947-4-1 UL 508 EN 60947-5-1 |
| Range | TeSys |
| Category | 22357-CTR,TESYS D,OPEN,40-65A AC |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on energisation between NC and NO contacts 1.5 ms on de-energisation between NC and NO contacts |
| Quantity per set | Set of 10 |
| Device short name | LC1D |
| Protective treatment | TH 3)IEC 60068-2-30 |
| Contactor application | Resistive load Resistive load |
| Mechanical robustness | Shocks contactor closed 15 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor opened 10 Gn for 11 ms) |
The LC1D50FE7 is a Schneider TeSys Deca 3-pole contactor rated 50 A, built for motor and resistive loads under IEC 60947-4-1 and UL 508. It carries IP2X finger protection and mounts on plate or rail.
The LC1D50FE7 switches 3 poles at 50 A. The LC1DT25U7 is a 4-pole variant rated 25 A (AC-1) with a 12 V coil and built-in 1NO-1NC aux contacts. Choose the LC1DT25U7 when the panel requires a fourth pole or a lower coil voltage; the LC1D50FE7 carries higher current capacity on three poles.
