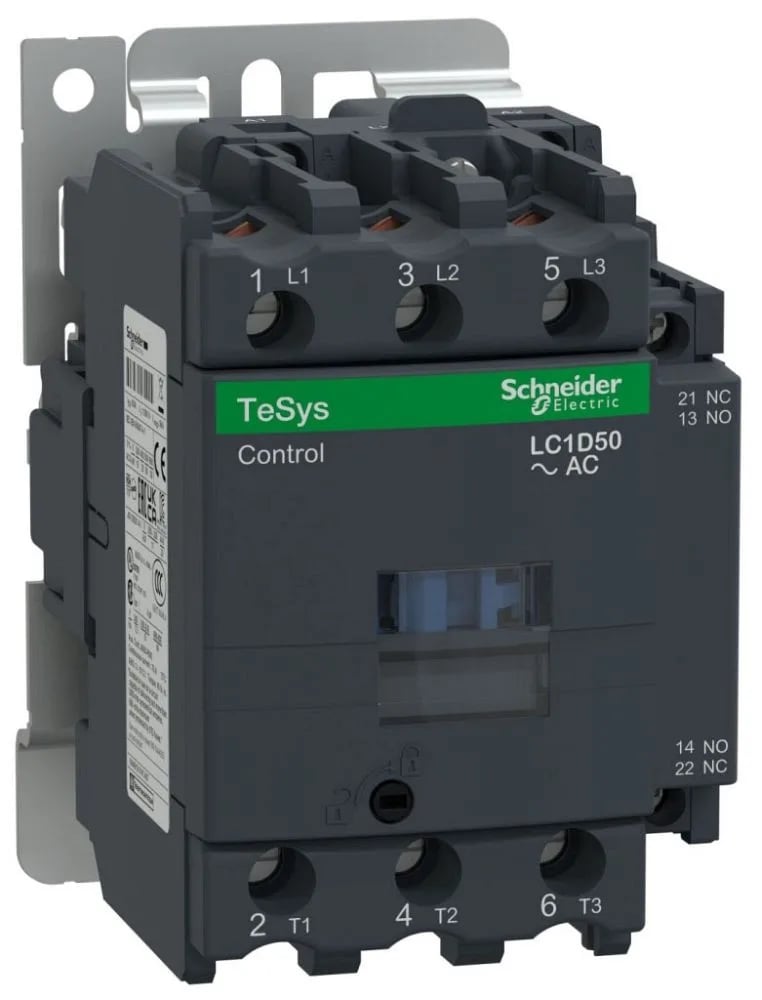

Schneider Electric LC1D50G6
MPNLC1D50G6
Active
IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, 3PH, 3 NO, 120VAC 60Hz coil, open|IEC contactor, TeSys D, nonreversing, 50A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 60Hz coil, open
$396.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 AC-4 AC-2 AC-3e |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Rail Plate |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 4.7 in (119 mm) |
| Width | 2.2 in (55 mm) |
| Height | 4.8 in (122 mm) |
All specifications
| Parameter | Value |
|---|---|
| Standards | EN 60947-4-1 UL 60947-4-1 IEC 60947-4-1 CSA C22.2 No 14 EN 60947-5-1 IEC 60947-5-1 |
| Range | TeSys |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor opened 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | 23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc |
MPN
LC1D50G6
