Schneider LC1D50G7 Iec Contactors 38 65 Amp — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-2 AC-4 AC-1 AC-3e |
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Mounting support | Plate Rail |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Depth | 4.7 in (119 mm) |
| Width | 2.2 in (55 mm) |
| Height | 4.8 in (122 mm) |
| Parameter | Value |
|---|---|
| Standards | UL 60947-4-1 EN 60947-4-1 EN 60947-5-1 IEC 60947-5-1 CSA C22.2 No 14 IEC 60947-4-1 |
| Range | TeSys |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor opened 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) |
| Permissible ambient air temperature around the device | 23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc |

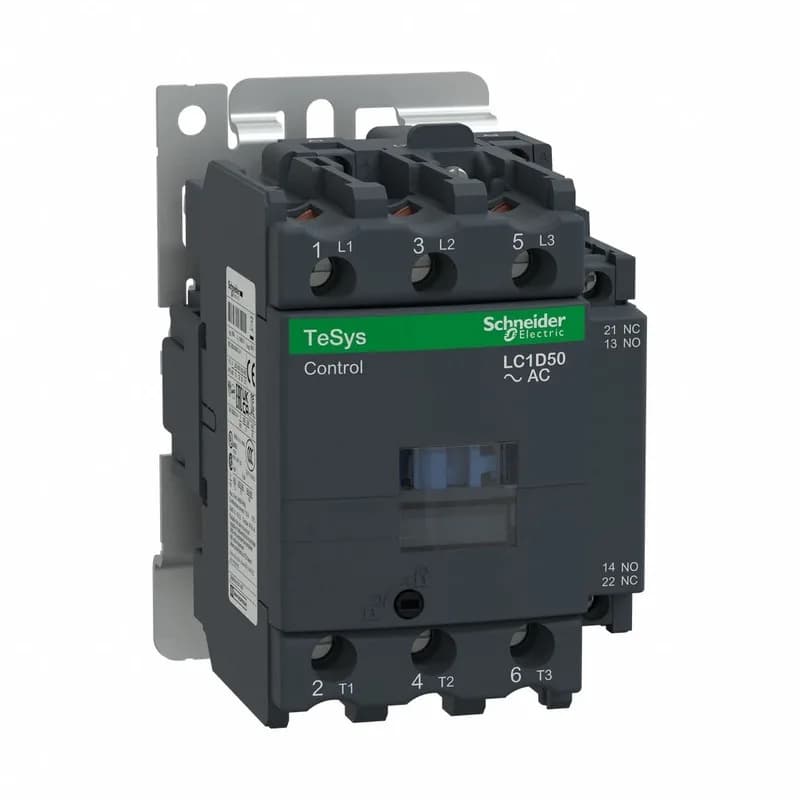

The LC1D50G7 is a Schneider TeSys Deca IEC contactor rated for 50 A continuous current across 3 poles, energized by a 120 V AC 60 Hz coil. It handles motor and resistive loads under AC-1 through AC-4 utilization categories, with a maximum rated voltage of 600 V AC. The contactor carries UL 60947-4-1, IEC 60947-4-1, and CSA C22.2 No. 14 listings, plus California Proposition 65 compliance, meeting typical panel documentation requirements.
