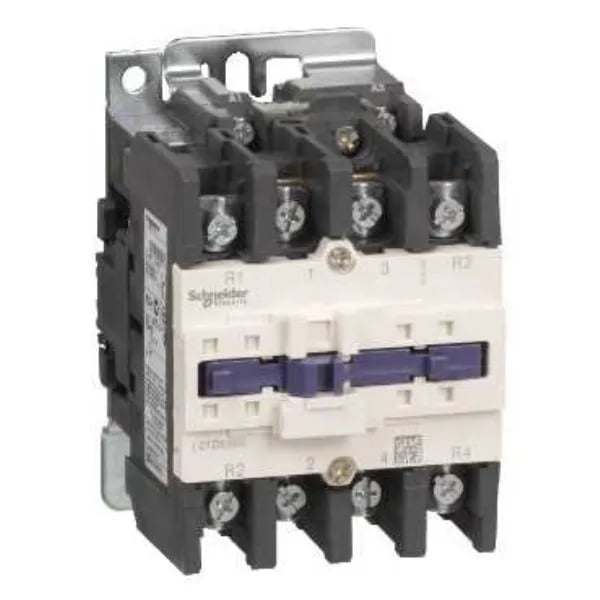

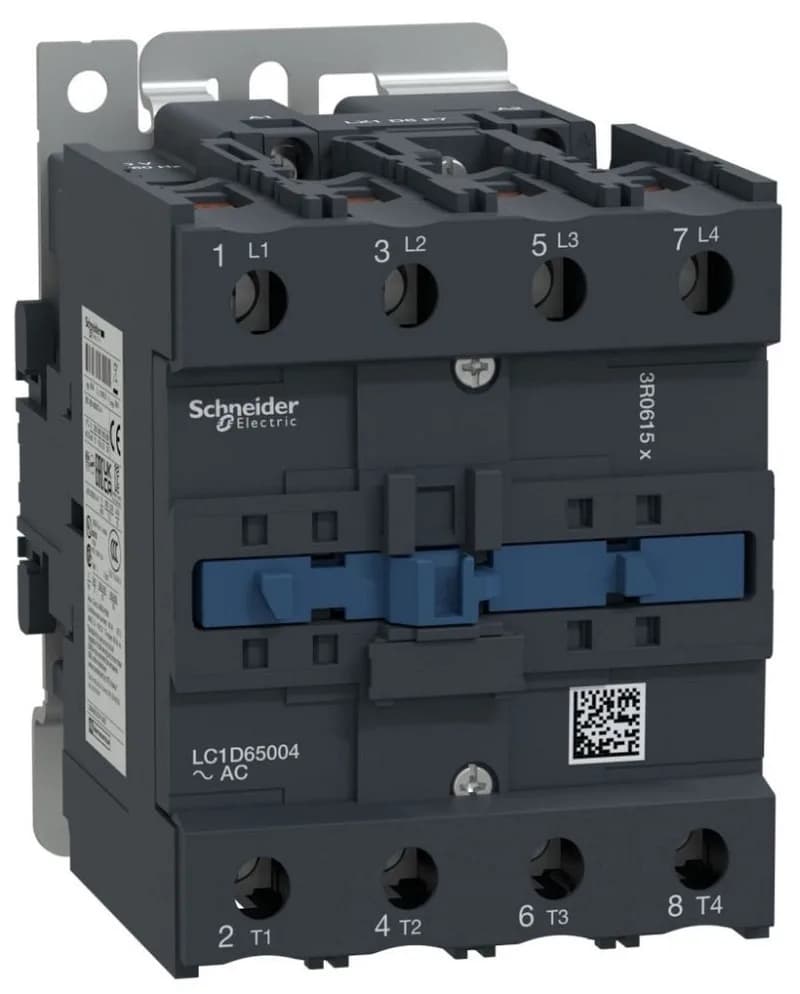

Schneider LC1D65004G7 TeSys D contactor, 4-pole, 80 A, 120 VAC coil

MPNLC1D65004G7

Obsolete

Schneider LC1D65004G7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.

$646.91 – $760.00Ref. price · indicative, final on quote

Find equivalent or request quote

Schneider Electric LC1D65004G7 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

LC1D65004G7 key specifications
Parameter	Value
Range of product	TeSys Deca
Product or component type	Contactor
[Ue] rated operational voltage	Power circuit 690 V AC 25...400 Hz
[Ie] rated operational current	80 A (at 10 MOhm for control circuit
Poles description	4P
Utilisation category	AC-1 AC-3 AC-3e AC-4
IP degree of protection	IP2X VDE 0106
Mounting support	Rail Plate
Operating altitude	9842.52 ft (3000 m) without derating
Depth	5.1 in (130 mm)
Width	3.3 in (85 mm)
Height	4.8 in (122 mm)

All specifications

LC1D65004G7 additional specifications
Parameter	Value
Standards	EN/IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 EN/IEC 60947-4-1
Category	US10I1222357
Fire resistance	1562 °F (850 °C) IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Non-overlap time	1.5 ms on de-energisation between NC and NO contacts 1.5 ms on energisation between NC and NO contacts
Device short name	LC1D
Protective treatment	THIEC 60068-2-30
Contactor application	Resistive load
Mechanical robustness	Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz)
Permissible ambient air temperature around the device	23...140 °F (-5...60 °C) -40...158 °F (-40...70 °C) at Uc

Product details

Overview

The LC1D65004G7 is a Schneider TeSys D IEC contactor rated for 80 A resistive load (AC-1) at 690 V, with a 4-pole normally-open configuration and a 120 VAC 50/60 Hz coil. It carries UL, CSA, IEC, and marine certifications (DNV, GL, LROS, BV, RINA, CCC) and is sealed to IP2X, making it suitable for panel-mount applications in industrial and marine environments.

Schneider discontinued the LC1D65004G7 on 2025-08-15; remaining units are available through surplus and broker channels. An RFQ confirms current availability and lead time for line-down or last-time-buy needs.
