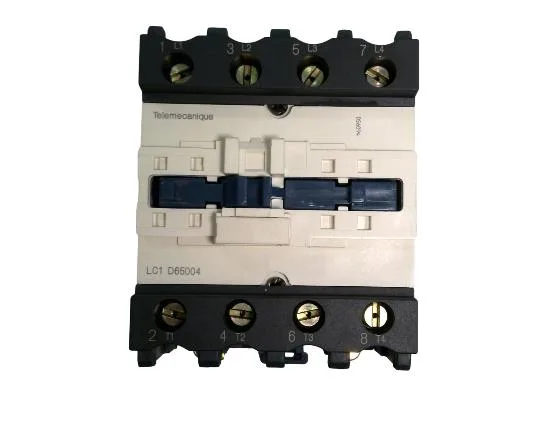

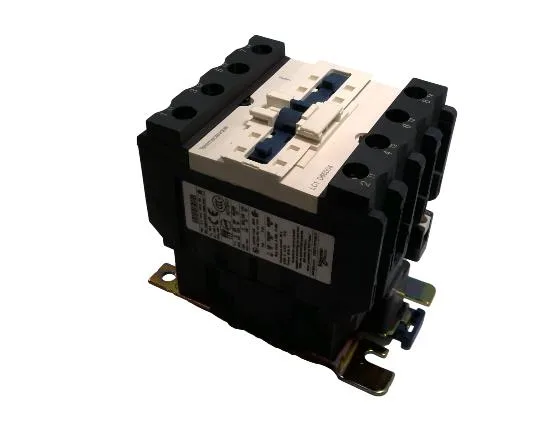

Schneider Electric LC1D65004M7
MPNLC1D65004M7
Obsolete
contactor TeSys Deca - 4 poles - AC-1 440V 80 A - coil 220 V AC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product / component type | Contactor |
| Application | Resistive load |
| Parameter | Value |
|---|---|
| Rated operational voltage (Ue) | Power circuit 10 MOhm for control circuit |
| Utilisation category | AC-1 AC-3 AC-3e AC-4 |
| Parameter | Value |
|---|---|
| Pole configuration | 4P |
| Parameter | Value |
|---|---|
| IP degree of protection | IP2X IEC 60529 IP2X VDE 0106 |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Mechanical robustness | Shocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz) |
| Protective treatment / pollution degree | TH 3)IEC 60068 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Parameter | Value |
|---|---|
| Standards | EN 60947-5-1 IEC 60947-4-1 CSA C22.2 No 14 EN 60947-4-1 UL 508 IEC 60947-5-1 |
| Parameter | Value |
|---|---|
| Width | 3.3 in (85 mm) |
| Height | 5 in (127 mm) |
| Depth | 5.1 in (130 mm) |
MPN
LC1D65004M7
