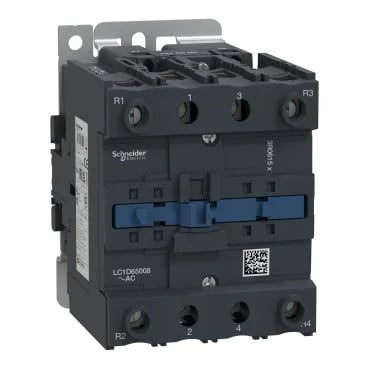

Schneider Electric LC1D65008M5

Schneider LC1D65008M5 TeSys Deca contactor, 4-pole, 80 A AC-1, 220 V AC coil

MPNLC1D65008M5
Active

Schneider Electric TeSys Deca Advanced LC1D65008M5 contactor, 4-pole, 80 A AC-1 switching current, 220 V AC 50 Hz coil, 1 kA breaking capacity, IP20, IEC/UL/CSA, resistive load.

$515.40Ref. price · indicative, final on quote
Schneider Electric LC1D65008M5 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D65008M5 key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeAC 50 Hz
Product or component typeContactor
Climatic withstandIACS E10 exposure to damp heat
Coil voltage220 V AC 50 Hz
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Control circuit voltage limits0.8...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 50 Hz 0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50 Hz 1...1.1 Uc (140...158 °F (60...70 °C)):operational AC 50 Hz
[Ue] rated operational voltagePower circuit Power circuit <= 300 V DC
[Uimp] rated impulse withstand voltage6 kV IEC 60947
[Icw] rated short-time withstand current520 A 104 °F (40 °C) - 10 s for power circuit 900 A 104 °F (40 °C) - 1 s for power circuit 110 A 104 °F (40 °C) - 10 min for power circuit 260 A 104 °F (40 °C) - 1 min for power circuit
Breaking capacity1000 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current80 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit

All specifications

LC1D65008M5 additional specifications
ParameterValue
[Ith] conventional free air thermal current80 A (at 140 °F (60 °C)) for power circuit
Inrush power in160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Power dissipation per pole9.6 W AC-1
Hold-in power consumption in15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportPlate Rail
Connections - terminalsControl circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: solid without cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth4.9 in (125 mm)
Width3.3 in (85 mm)
Height5 in (127 mm)
Product weight3.20 lb(US) (1.45 kg)
Electrical durability1.4 Mcycles 80 A AC-1 <= 440 V
Mechanical durability6 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
Category22357-CTR,TESYS D,OPEN,40-65A AC
Operating time4...19 ms opening 12...26 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Heat dissipation4...5 W at 50 Hz
Protective coverWith
Average impedance1.5 mOhm - Ith 80 A 50 Hz for power circuit
Device short nameLC1D
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.8 lbf.in (8 N.m) screw clamp terminals 0.04...0.05 in² (25...35 mm²) hexagonal 0.2 in (4 mm) Power circuit 44.3 lbf.in (5 N.m) screw clamp terminals 0.002...0.04 in² (1...25 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLC1D
Overvoltage categoryIII
Protective treatmentTHIEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessShocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz)
Associated fuse rating125 A gG at 125 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1000 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The LC1D65008M5 is a Schneider TeSys Deca Advanced 4-pole contactor rated for 80 A switching current in AC-1 resistive load duty, energized by a 220 V AC 50 Hz coil. It carries a 1 kA breaking capacity at 440 V and coordinates with a 125 A gG fuse for type 2 protection, with 600 V insulation and 6000 V impulse withstand for panel compliance.

Compared to the LC1D40008X6, the LC1D65008M5 delivers 80 A switching current versus 60 A, and a 1000 A making capacity at 440 V versus 800 A, making it the choice for higher resistive load banks or derating headroom.

MPN
LC1D65008M5
