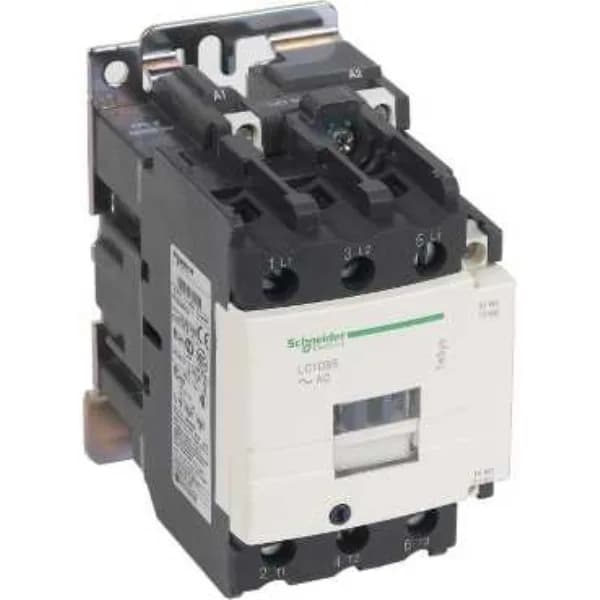

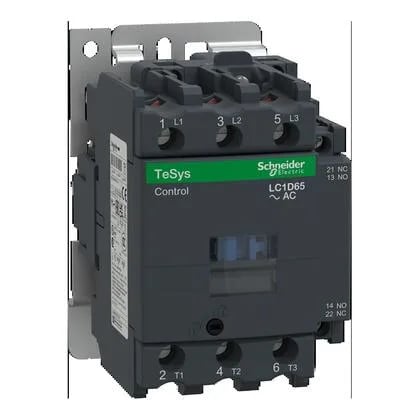

Schneider LC1D65M7 Electrical Contactors — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | IACS E10 exposure to damp heat |
| [Ue] rated operational voltage | Power circuit 10 MOhm for control circuit |
| Poles description | 3P |
| Utilisation category | AC-1 AC-2 AC-4 AC-3e AC-1 |
| IP degree of protection | IP2X VDE 0106 IP2X IEC 60529 |
| Mounting support | Plate Plate |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 4.7 in (119 mm) |
| Width | 3.0 in (75 mm) |
| Height | 5 in (127 mm) |
| Parameter | Value |
|---|---|
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 UL 60947-4-1 IEC 60947-4-1 |
| Range | TeSys |
| Category | US10I1222357 |
| Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Non-overlap time | 1.5 ms on energisation between NC and NO contacts 1.5 ms on de-energisation between NC and NO contacts |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Shocks contactor closed 15 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor opened 10 Gn for 11 ms) |
The LC1D65M7 is a Schneider TeSys D IEC contactor rated for 65 A continuous current and 40 hp at 480 VAC, switching a three-phase motor load through three poles with a 220 VAC 50/60 Hz coil.
The LC1D115T7 is the next step up in the same TeSys D frame: it carries 115 A rated current and 75 hp at 480 VAC, versus the LC1D65M7's 65 A and 40 hp. Pick the LC1D115T7 when the motor load exceeds the 65 A / 40 hp ceiling.
