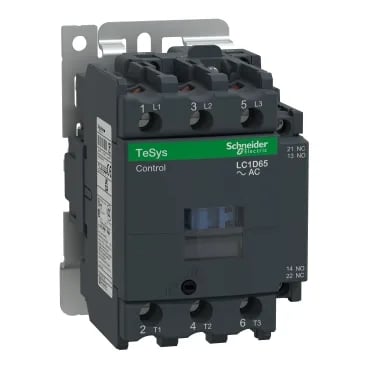

Schneider LC1D65P7S335 Tesys Deca Contactors — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| [Ue] rated operational voltage | Power circuit: 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-1 AC-3e |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...3000 m |
| Depth | 119 mm |
| Width | 75 mm |
| Height | 127 mm |
| Parameter | Value |
|---|---|
| Standards | EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 EN 60335-1 |
| Range | TeSys |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V0 conforming to UL 94 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor open (8 Gn for 11 ms) Shocks contactor closed (10 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...60 °C 60...70 °C with derating |
The LC1D65P7S335: It carries IEC, UL, CSA, CCC, and UKCA certifications and is sealed to IP20, suited for motor control and resistive load switching in panel builds.
The LC1D65P7S335 shares the same 65 A frame as the LC1D65A6KUE but uses a 230 V AC coil versus the LC1D65A6KUE's unspecified coil voltage; both are 3-pole TeSys Deca contactors with screw clamp terminals, so the LC1D65A6KUE is a functional alternative if the coil voltage matches the application.
