Schneider Electric LC1D80008
MPNLC1D80008

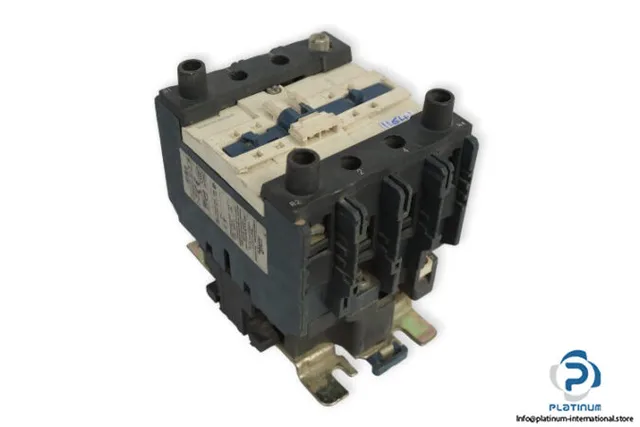

TELEMECANIQUE LC1 D80008 CONTACTOR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Model | LC1 D80008 |
| Product type | Contactor |
| Parameter | Value |
|---|---|
| Power rating | 15 HP (240 V) |
| Rated thermal current (Ith) | 125 A |
| Continuous current | 110 A |
| Max. current, non-inductive load | 125 A |
| Coil voltage | 48 V AC |
| Coil voltage (V) | 48 |
| Voltage type | AC |
| Frequency | 50 / 60 Hz |
| Frequency (Hz) | 50/60 |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 6 Kv |
| Suitable for use | on Circuit Capable of Delivering not More Than 10000 rms Symmetrical Amperes, 600 V Max. ,With 2 poles in a circuit 3 phase |
| Parameter | Value |
|---|---|
| Number of poles | 4 |
| Parameter | Value |
|---|---|
| Dimensions (mm) | 77 x 137 x 70 |
| Dimensions | 77 x 137 x 70 mm |
| Torque | 100 Ib.in |
| Wire range (AWG) | 2 … 10 CU |
| Compatible with | Schneider Electric LC1D40, LC1D50, LC1D65 … LC1D80 contactors |
| Weight | 1,72 kg |
| Parameter | Value |
|---|---|
| Operating temperature | -5 … 60°C |
| Parameter | Value |
|---|---|
| Standards / approvals | IEC 947 , EN 60947 , NFC 63110 , VDE 0660 , BS 5424 |
| Parameter | Value |
|---|---|
| Condition | Used |
| Type | Contactor Coil |
MPN
LC1D80008
