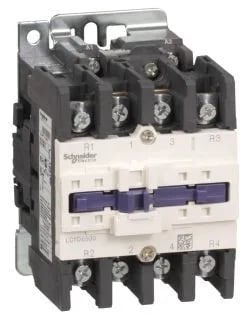

Schneider LC1D80004E7 TeSys Deca Contactor, 125 A AC-1

MPN LC1D80004E7
Active

Schneider Electric TeSys Deca LC1D80004E7, 4-pole contactor, AC coil 50/60 Hz, 125 A AC-1, 55 kW motor power at 500 V, 4.9 in depth, IP20 front face.

$705.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

LC1D80004E7 key specifications
ParameterValue
Control circuit typeAC 50/60 Hz
Main product or component typeContactor
VoltagePower circuit Power circuit <= 690 V AC
Coil voltage48 V AC 50/60 Hz
Current125 A (at 80 A (at 80 A (at 55 A (at <140 °F (60 °C)) at <= 400 V AC AC-4 for power circuit
Utilization categoryAC-1
IP ratingIP20
Temp operating max60 °C
Temp operating min-40 °C
Pollution degree3
Depth4.9 in (125 mm)
Width3.8 in (96 mm)

All specifications

LC1D80004E7 additional specifications
ParameterValue
Height5 in (127 mm)
Electrical life cycles0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical life cycles4 Mcycles
ApplicationResistive load
Fire behaviorV1 conforming to UL 94
Operating time20...35 ms closing 6...20 ms opening
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

LC1D80004E7 is a TeSys Deca 4-pole contactor rated 125 A in AC-1 duty — that's the resistive load curve, not the motor-breaking number. It handles motor power up to 55 kW at 500 V, with lower kW ratings at standard 400 V and 230 V. The coil is AC 50/60 Hz without a built-in suppressor, so you'll need an external RC snubber or varistor if you're switching it with a PLC output. Mounts on rail or plate; front face is IP20. Three dimensions: 4.9 in deep, 3.8 in wide, 5 in tall — it fits the same footprint as other TeSys Deca frames.

Ratings and wiring

The 125 A AC-1 continuous rating is your ceiling for resistive loads. For motor starts, read the kW column: 22 kW at 230 V, 37 kW at 400 V, 45 kW at 690 V. Those match typical IEC motor frames in this class. Operating time is 20…35 ms closing, 6…20 ms opening — fast enough for most load cycling. Power circuit torque is 106.2 lbf.in (12 N·m); control circuit terminals are 10.6 lbf.in (1.2 N·m). Use a flat or hexagonal bit, 6–8 mm for the power studs. Control wires accept 1…2.5 mm² flexible with ferrule, or up to 4 mm² solid. The contacts are 4 NO — all normally open, so order add-on blocks for any NC auxiliaries.

Certified to IEC 60947-4-1 and 60947-5-1, UL 60947-4-1, CSA C22.2 No. 14, plus the Japan-specific Annex JJ for AC heat-pump duty. Flame retardance V-1 per UL 94. Climatic withstand per IACS. These listings cover most panel shop and export requirements — no extra paperwork chase.
