Schneider Electric LC1D80008M7

Schneider LC1D80008M7 TeSys Deca 4-Pole Contactor, 1100A Bre

MPNLC1D80008M7
Active

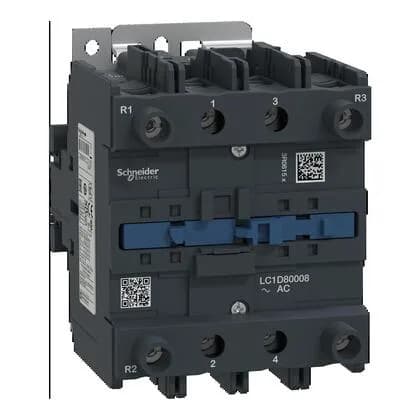

Schneider Electric TeSys Deca LC1D80008M7 4-pole contactor, AC-1 1100 A breaking capacity, depth 140 mm, width 96 mm, height 127 mm.

$695.00Ref. price · indicative, final on quote
Schneider Electric LC1D80008M7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D80008M7 key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeAC 50/60 Hz
Product or component typeContactor
Climatic withstandIACS E10 exposure to damp heat
Coil voltage220 V AC 50/60 Hz
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 1000 V IEC 60947-4-1
Control circuit voltage limits0.85...1.1 Uc (-40...131 °F (-40...55 °C)):operational AC 60 Hz 0.3...0.6 Uc (-40...131 °F (-40...55 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...131 °F (-40...55 °C)):operational AC 50 Hz
[Ue] rated operational voltagePower circuit <= 690 V AC 25...400 Hz
[Uimp] rated impulse withstand voltage8 kV IEC 60947
[Icw] rated short-time withstand current640 A 104 °F (40 °C) - 10 s for power circuit 990 A 104 °F (40 °C) - 1 s for power circuit 135 A 104 °F (40 °C) - 10 min for power circuit 320 A 104 °F (40 °C) - 1 min for power circuit
Breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current125 A (at <140 °F (60 °C)) at <= 1000 V AC AC-1 for power circuit

All specifications

LC1D80008M7 additional specifications
ParameterValue
[Ith] conventional free air thermal current125 A (at 140 °F (60 °C)) for power circuit
Inrush power in245 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 245 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Power dissipation per pole12.5 W AC-1
Hold-in power consumption in26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportPlate Rail
Connections - terminalsControl circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: flexible without cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: flexible with cable end Power circuit: connector 2 0.006...0.02 in² (4...16 mm²) - cable stiffness: flexible with cable end Power circuit: connector 1 0.006...0.08 in² (4...50 mm²) - cable stiffness: solid without cable end Power circuit: connector 2 0.006...0.04 in² (4...25 mm²) - cable stiffness: solid without cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth5.5 in (140 mm)
Width3.8 in (96 mm)
Height5 in (127 mm)
Electrical durability0.8 Mcycles 125 A AC-1 <= 440 V
Mechanical durability4 Mcycles
StandardsEN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2
RangeTeSys
CategoryUS10I1222359
Operating time20...35 ms closing 6...20 ms opening
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Heat dissipation6...10 W at 50/60 Hz
Protective coverWith
Average impedance0.8 mOhm - Ith 125 A 50 Hz for power circuit
Device short nameLC1D
Tightening torqueControl circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals Philips No 2 Power circuit 106.2 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm Power circuit 106.2 lbf.in (12 N.m) connector hexagonal 0.2 in (4 mm) Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLC1D
Overvoltage categoryIII
Protective treatmentTHIEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Shocks contactor open 8 Gn for 11 ms) Vibrations contactor closed 3 Gn, 5...300 Hz) Shocks contactor closed 10 Gn for 11 ms)
Associated fuse rating200 A gG at 160 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

The Schneider Electric LC1D80008M7 is a 4-pole TeSys Deca contactor, rated for AC-1 resistive load duty with a breaking capacity of 1100 A at 440 V per IEC 60947. Its poles are arranged as 2 NO + 2 NC, and the coil operates on AC 50/60 Hz with a 245 VA inrush at 20 °C. No built-in suppressor module is fitted, so external suppression is required across the coil for inductive loads.

Mounting and terminations

Dimensions: depth 5.5 in (140 mm), width 3.8 in (96 mm), height 5 in (127 mm). Mounts on plate or rail. Power circuit terminals accept 4–50 mm² flexible or solid cable; control circuit terminals are screw clamp for 1–2.5 mm² flexible with or without ferrule. Tightening torque for power circuit: 106.2 lbf·in (12 N·m) using a flat or hexagonal driver. The front face is IP20 rated, pollution degree 3.

Frequently asked questions

What are the overall dimensions of the LC1D80008M7?

Depth 5.5 in (140 mm), width 3.8 in (96 mm), height 5 in (127 mm).

What standards does the LC1D80008M7 comply with?

It complies with IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 14, and additional IEC 60335 appliance safety clauses.

What coil type does this contactor use?

AC 50/60 Hz control coil, inrush 245 VA at 20 °C, without built-in suppressor module.

MPN
LC1D80008M7
