Schneider Electric LC1D80AEHE

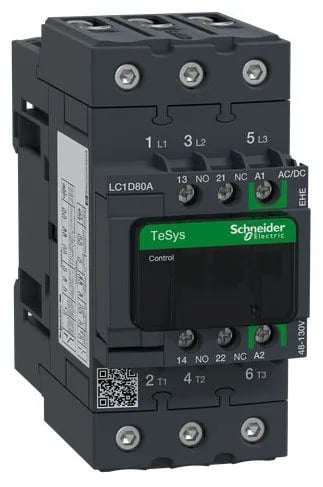

Schneider TeSys Deca Advanced LC1D80AEHE 3P Contactor, AC-3/

MPNLC1D80AEHE
Active

Schneider Electric TeSys Deca Advanced, 3P Contactor (LC1D80AEHE), AC-3/AC-1 utilization, IP20 front face, 4.7 in depth.

$665.00Ref. price · indicative, final on quote
Schneider Electric LC1D80AEHE datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D80AEHE key specifications
ParameterValue
Range of productTeSys Deca Advanced
Product or component typeContactor
Climatic withstandIACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
[Ue] rated operational voltagePower circuit 10 MOhm for signalling circuit
Poles description3P
Utilisation categoryAC-3 AC-1 AC-3e
IP degree of protectionIP20 front face IEC 60529
Mounting supportPlate Rail
Operating altitude0...9842.52 ft (0...3000 m)
Depth4.7 in (120 mm)
Width2.2 in (55 mm)
Height4.8 in (122 mm)

All specifications

LC1D80AEHE additional specifications
ParameterValue
StandardsEN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
CategoryUS10I1222356
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Non-overlap time1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Device short nameLC1D
Contactor applicationMotor control Resistive load
Mechanical robustnessVibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor open 10 Gn for 11 ms) Shocks contactor closed 15 Gn for 11 ms)
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

It carries AC-3, AC-1, and AC-3e utilisation categories — the AC-3 rating governs motor switching, the AC-1 covers resistive loads, and AC-3e handles high-performance motor applications. Footprint: 4.7 in deep, 2.2 in wide, 4.8 in tall. Mounts on rail or plate via the included support.

Vibration rating: 2 Gn open, 4 Gn closed; shock: 10 Gn open, 15 Gn closed. That means it holds contact closed under typical machine-tool vibration — no chattering on a CNC spindle-drive cabinet even with axis acceleration cycles. Rated for operation up to 3000 m altitude; ambient -40 to 60 °C, with derating to 70 °C. This fits a standard control panel without forced cooling on most factory floors. IP20 front face means touch-safe wiring side after panel installation.

Compliance documentation: certified to EN/IEC 60947-4-1 (motor contactor), EN/IEC 60947-5-1 (control circuit), UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC 60335-1. Fire resistance 850°C per IEC 60695-2-1, flame retardance V1 conforming to UL 94.

Frequently asked questions

What compliance certifications does this contactor carry?

It complies with EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC 60335-1. Fire resistance is 850°C (IEC 60695-2-1) and flame retardance is V1 (UL 94).

What are its key dimensions?

Depth 4.7 in (120 mm), width 2.2 in (55 mm), height 4.8 in (122 mm). It supports both rail and plate mounting.

What utilisation categories does it cover?

AC-3 (motor starting), AC-1 (resistive loads), and AC-3e (enhanced motor performance) are listed.

MPN
LC1D80AEHE
