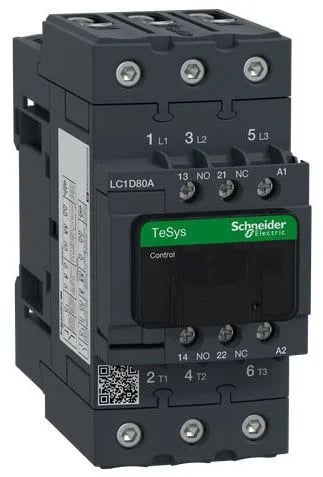

Schneider Electric LC1D80AN7
MPNLC1D80AN7
Active
Square D LC1D80AN7 3P Contactor|Square D LC1D80AN7 3P Contactor
$420.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Climatic withstand | conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| [Ue] rated operational voltage | Power circuit: 690 V AC 25...400 Hz Power circuit: 300 V DC |
| [Ie] rated operational current | 80 A (at 66 A (at 66 A (at 10 MOhm for signalling circuit |
| Poles description | 3P |
| Utilisation category | AC-3 AC-3e AC-1 AC-4 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Mounting support | Rail Plate |
| Operating altitude | 0...3000 m |
| Depth | 120 mm |
| Width | 55 mm |
All specifications
| Parameter | Value |
|---|---|
| Height | 122 mm |
| Product weight | 0.86 kg |
| Standards | EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2 |
| Range | TeSys TeSys Deca |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Device short name | LC1D |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Contactor application | Motor control Resistive load |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5...300 Hz) Vibrations contactor closed (4 Gn, 5...300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (10 Gn for 11 ms) |
| Permissible ambient air temperature around the device | -40...60 °C 60...70 °C with derating |
MPN
LC1D80AN7
